Automation cable; AFS; Fixed use; 24 to 91 Ω/km (depending on AWG gauge); PE/PVC; 150V to 300V rms; Black
INNOVTRONIC® AFS CABLE WITH ALUMINIZED TAPE + TIN-PLATED COPPER BRAID
💡 Add to cart — Immediate purchase. The discount for your volume bracket is automatically applied, and you complete the order online.
📋 Add to quote request Our team will analyze and get back to you with a proposal. Ideal for large volumes, special deadlines, or when you need to add cables that are not available for sale online.
- Global Double Protection: Constructed with aluminized polyester tape and tinned copper braid for superior external protection.
- Hospital and Industrial Reliability: Ideal for sensitive medical equipment, industrial and commercial automation, and audio systems.
- Quick and Colorful Installation: Routes are identified by specific colors that facilitate handling and prevent errors during connection.
- Sustainability and Flexibility: Flexible PVC roofing free of heavy metals (LMP), protecting the environment and your project.
- Permanent Laser Engraving: Indelible identification on the outer casing that won't fade, guaranteeing security and complete product traceability.
|
Benefits
| Applications
|
| General information | |
|---|---|
| Brand | Innovcable® |
| Product type | AFS cable - Interconnection cable with double shielding. |
| Electrical Parameters | |
| Operating Voltage | 250V to 300V rms |
| Internal Conductor Resistance | From 24 to 91 Ω/km (according to AWG gauge). |
| Product Design | |
| Conductor Material | Tin-plated soft electrolytic copper wire. |
| Insulation Material | Polyethylene (PE) or Polyvinyl chloride (PVC/A 70°C). |
| Road Identification (Colors) | Natural/Red, Natural/Black, Natural/Blue, Natural/Green, Black/Red, Black/Blue, Red/Blue, Red/Green, Blue/Green, Yellow/Natural, Yellow/Red. |

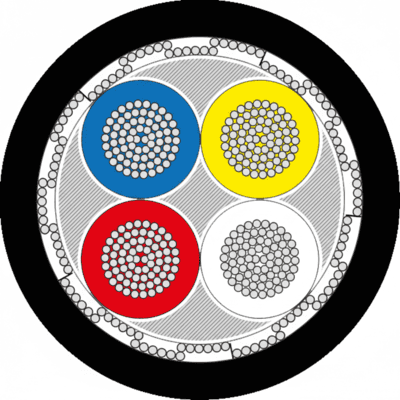

| Armoring of the Assembly (Double) | Aluminized polyester tape + tinned copper braid. |
| Cover Material | Flexible polyvinyl chloride (PVC) (70°C). |
| Cover Features | Free of heavy metals (LMP) and with double recording of footage. |
| Cover Color | Black. |
| Construction Options (Upon Request) | PVC (105°C), LSZH (Low Smoke Zero Halogen) and bare copper conductor. |
| Features and Applications | |
| Application Area | Hospital equipment systems, commercial and industrial automation, and audio system interconnection. |
| Protection against interference | Double global shielding for excellent performance against external electromagnetic interference. |
| Flexibility | High flexibility for easy installation and handling. |
| Inventory control | Facilitated by double recording of the footage on the outer cover. |
| Applicable Standards | |
| Quality management | ISO 9001 (SGS) |
| Type | Gauge (AWG) | Formation (Paths/Pairs) | External Diameter (mm) | Approximate Weight (kg/km) | Maximum Resistance (Ω/km) | Voltage (V) |
| AFS | 24 AWG | 1 Pair (2v) | 4,7 | 26 | 91 | 250 |
| AFS | 24 AWG | 2 Pairs (4v) | 6,9 | 46 | 91 | 250 |
| AFS | 24 AWG | 3 Pairs (6v) | 7,4 | 56 | 91 | 300 |
| AFS | 22 AWG | 1 Pair (2v) | 5,4 | 33 | 55 | 300 |
| AFS | 22 AWG | 2 Pairs (4v) | 8 | 60 | 55 | 300 |
| AFS | 22 AWG | 3 Pairs (6v) | 8,7 | 74 | 55 | 300 |
| AFS | 22 AWG | 5 Pairs (10v) | 9,4 | 97,17 | 55 | 300 |
| AFS | 22 AWG | 7 Pairs (14v) | 10,9 | 127 | 55 | 300 |
| AFS | 20 AWG | 1 Pair (2v) | 6,2 | 45 | 35 | 300 |
| AFS | 20 AWG | 2 Pairs (4v) | 10,1 | 87 | 35 | 300 |
| AFS | 18 AWG | 1 Pair (2v) | 7,5 | 62 | 24 | 300 |
