Power cable for airport lighting; Shielded; 5 kV; 1 conductor; 8 AWG / 6,00 mm²; EPR / CPE; 85°C
FAA L-824 B Shielded 5kV Airport Lighting Auxiliary Cable
💡 Add to cart — Immediate purchase. The discount for your volume bracket is automatically applied, and you complete the order online.
📋 Add to quote request Our team will analyze and get back to you with a proposal. Ideal for large volumes, special deadlines, or when you need to add cables that are not available for sale online.
- Designed for Maximum Security: Ideal for 5kV series primary circuits, with reinforced insulation and sheathing.
- Superior Electrostatic Shielding: Copper mesh that ensures circuit protection and operational safety.
- Performance and Reliability: Insulation made of EPR and sheathing made of CPE, resistant to weathering, moisture and abrasion.
- Resistant to Chemical and Mechanical Elements: It withstands oils, greases, ozone, and UV rays.
- Quality Standard Assured: Meets the stringent FAA L-824 standards, guaranteeing a product of the highest performance.
|
Benefits
| Applications
|
| General information | |
|---|---|
| Brand | Innovcable |
| Product type | Primary power cable for series circuits of airport lighting (FAA L-824 Type B). |
| Electrical Parameters | |
| Nominal Voltage | 5 kV |
| Product Design | |

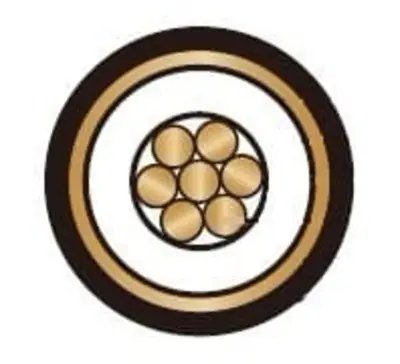

| Conductor Material | Bare copper wires, soft temper. |
| Driver Design | Class 2 string set. |
| Includes protective conductor (ground). | No |
| Shielded | Yes, with copper tape applied helically over the insulation. |
| Cable Format | Round |
| Base Material for Vein Isolation | Elastomeric compound EPR 90°C. |
| Base Material for the External Covering | Thermoplastic polyethylene (PE). |
| Cover Color | Black. |
| Road Identification | Not applicable (single-core cable). |
| Product characteristics | |
| Application Area | Primary series circuits for lighting airports, runways, and taxiways. For installation in ducts, conduits, or direct burial. |
| For continuous bending | No |
| Temperature, fixed installation | Not specified. |
| Maximum temperature in the driver | 90°C in continuous service. |
| Flame retardant | Not specified. |
| UV resistant | Yes. |
| Moisture resistant | Yes. |
| Oil resistant | Not specified. |
| Applicable Standards | |
| FAA L-824 B | Yes |
| ICEA S-96-659/NEMA WC-71 | Yes |
| Size mm²/AWG | Conductor - Number of Wires | Conductor - Approximate Outer Diameter (mm) | Insulation - Nominal Thickness (mm) | Insulation - Approximate Outer Diameter (mm) | Coverage - Nominal Thickness (mm) | Cover - Approximate Outer Diameter (mm) | Approximate weight of copper (kg/km) | Maximum DC Resistance of the Conductor at 20°C (Ω/km) |
| 1x6mm2 | 7 | 3.12 | 2.3 | 7.72 | 1.2 | 11.1 | 194 | 03.08 |
| 1x8AWG | 7 | 3.69 | 2.3 | 8.29 | 0.76 | 11.7 | 225 | 2.144 |
