Power cable; 0,6/1 kV; 1 conductor; max. 300,00 mm²; LSZH, CECO™ / CEAC™, Flame and oil resistant; +90°C
Single-core rubber cable NSGAFOU power – 0,6/1 kV Heavy Duty
💡 Add to cart — Immediate purchase. The discount for your volume bracket is automatically applied, and you complete the order online.
📋 Add to quote request Our team will analyze and get back to you with a proposal. Ideal for large volumes, special deadlines, or when you need to add cables that are not available for sale online.
- Fire Safety: Halogen-free and flame retardant, crucial for protecting lives and equipment.
- High Chemical and UV Resistance: It withstands oils, greases, and UV rays, making it ideal for industrial and automotive environments.
- Performance in Extreme Temperatures: Reliable operation from -40°C to +90°C, ensuring performance in any weather condition.
- Ideal for Critical Applications: Essential for railways, buses, electrical panels, and high-performance industrial installations.
- Robust and Flexible Construction: Insulation made of special rubber for maximum mechanical protection, flexibility, and long service life.
|
Benefits
| Applications
|
| General information | |
|---|---|
| Brand | INNOVCABLE |
| Model/Name | NSGAFÖU |
| Product type | Flexible, single-core power cord with rubber insulation and sheathing for high-demand applications. |
| Electrical Parameters | |
| Nominal Voltage (Uo/U) | 0,6 / 1 kV |
| AC Test Voltage | 4 kV |
| Maximum Short-Circuit Temperature | +250 °C in the conductor (max. duration 5 seconds). |

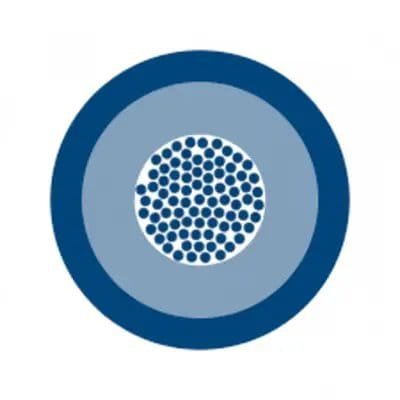

| Product Design | |
| Conductor Material | Tinned, annealed copper wires. |
| Driver Design | Flexible class 5, according to IEC 60228 / VDE 0295. |
| Conductor Resistance | According to IEC 60228 / VDE 0295. |
| Current Capacity | As per VDE 0298-4. |
| Separator | Suitable tape over the driver. |
| Insulation Material | CECO™ elastomeric rubber compound for heavy-duty applications. |
| Exterior Roofing Material | CEAC™ elastomeric rubber compound for heavy-duty applications. |
| Cover Color | Black. |
| Product characteristics | |
| Application Area | Rail vehicles, buses, light rail vehicles, subways, distribution panels, industrial installations, pipelines, cable trays, and as a power cable in transformer substations. Suitable for grounding and short-circuit connections. |
| For continuous bending | Yes. |
| Minimum Radius of Curvature | Fixed installation: As per VDE 0298-3 Table 3. Mobile use (alternating current): 8 x outer diameter. Mobile use (direct current): 6 x outer diameter. |
| Temperature, fixed installation | -40 °C to +90 °C. |
| Temperature, constant movement | -25 °C to +90 °C. |
| Maximum temperature in the driver | +90 °C. |
| Minimum Installation Temperature | -25 ° C. |
| Flame retardant | Yes, in accordance with IEC 60332-1-2. |
| UV resistant | Yes. |
| Oil resistant | Yes, in accordance with EN 60811-404. |
| Standards and Approvals | |
| Building Standards | VDE 0250-602, VDE 0250-1 |
| Driver's Rules | IEC 60228, VDE 0295 Class 5 |
| Testing Standards | IEC 60332-1-2, EN 60811-404, VDE 0472, VDE 0473 |
| User Guide | VDE 0298-3, VDE 0298-4 |
| Approvals | VDE, EAC, RoHS |
| Cross Section (mm²) | Nominal Outside Diameter (mm) | Approximate Weight (kg/km) | Minimum Bending Radius (fixed installation) (mm) | Maximum Resistance of Conductors at 20°C (ohm/km) |
| 1 x 1,5 | 5,8 | 48 | 17 | 13,7 |
| 1 x 2,5 | 6,2 | 60 | 19 | 8,21 |
| 1 x 4 | 6,7 | 77 | 20 | 5,09 |
| 1 x 6 | 7,2 | 97 | 22 | 3,39 |
| 1 x 10 | 8,7 | 151 | 26 | 1,95 |
| 1 x 16 | 9,7 | 210 | 29 | 1,24 |
| 1 x 25 | 12,6 | 333 | 50 | 0,795 |
| 1 x 35 | 13,5 | 428 | 54 | 0,565 |
| 1 x 50 | 15 | 565 | 60 | 0,393 |
| 1 x 70 | 16,9 | 780 | 68 | 0,277 |
| 1 x 95 | 19,25 | 1015 | 77 | 0,21 |
| 1 x 120 | 20,95 | 1261 | 84 | 0,164 |
| 1 x 150 | 22,75 | 1545 | 91 | 0,132 |
| 1 x 185 | 25,05 | 1863 | 100 | 0,108 |
| 1 x 240 | 28,38 | 2475 | 114 | 0,0817 |
| 1 x 300 | 31,15 | 3033 | 125 | 0,0654 |
