Power and Control Cable; Copper Braided Shielding; Max. 10,00 mm²; Up to 1,0 mm² 500 V; From 1,50 mm² to 10,00 mm² 1000 V; 2 to 56 conductors; Numbered Cores; HEPR / SHF1; Flame Retardant; +70°C

Shielded Copper Braided Control/Command Cable (BTC) ATOX HEPR/SHF1 – NBR 16442

Rodent protection?

Provides extra protection against rodents and termites. The price will be updated in your cart.

Green Way Terra Protection?

Configure one of the cable wires to be green for grounding. The value will be updated in the cart.

💡 Add to cart — Immediate purchase. The discount for your volume bracket is automatically applied, and you complete the order online.
📋 Add to quote request Our team will analyze and get back to you with a proposal. Ideal for large volumes, special deadlines, or when you need to add cables that are not available for sale online.

Non-Tox Control Cable: Safety and Performance for Your InstallationDesigned for installations requiring maximum safety and reliability. This cable offers superior technology, with shielding against interference and a halogen-free composition, ensuring the protection of lives and critical equipment.
  • Maximum Security Guaranteed: Non-toxic compound with low smoke emission, essential for protecting lives.
  • Clean and Reliable Signal: Copper braid shielding that eliminates electromagnetic interference.
  • High Durability and Versatility: Resistant to UV rays, moisture, weathering, and various chemical agents.
  • Critical and Industrial Applications: Ideal for automation, panels, control circuits, power plants and substations.
  • Superior Performance: Excellent flexibility for easy installation and withstands high operating temperatures (90°C).

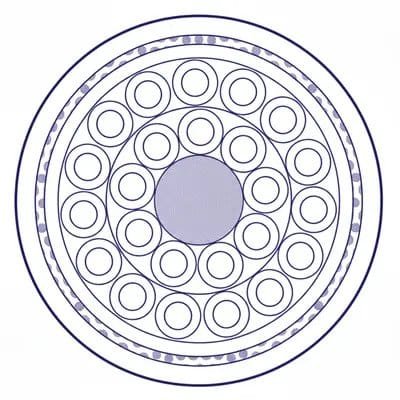

PRODUCT DESIGN
  • Stranded conductor made of bare electrolytic copper wires, soft temper, stranding class 5 NBR NM 280.
  • Insulation in compound (HEPR - ethylene propylene rubber) 90°C.
  • Separator made of polyester tape.
  • Intermediate layer made of halogen-free, flame-retardant thermoplastic compound (SHF1).
  • Bare copper braid shielding.
  • Non-hygroscopic tape.
  • Halogen-free, flame-retardant thermoplastic compound (SHF1) covering in black.
DETAILS

Benefits

  • High security: Halogen-free compound (LSZH), with low emission of smoke and toxic gases in case of fire.
  • Superior resistance: HEPR insulation for continuous operation at temperatures up to 90°C.
  • Robust protection: Copper braid shielding that provides protection against electromagnetic interference (EMV).
  • High flexibility: Class 5 conductor that facilitates installation in locations with curves and complex layouts.
  • Outdoor durability: Good resistance to UV rays, humidity and various weather conditions, ideal for outdoor environments.
  • Chemical resistance: It withstands contact with certain chemicals, increasing its lifespan in industrial areas.
  • Flame retardant properties: Constructed with flame-retardant materials, increasing safety.
  • Signal reliability: Effective shielding ensures the integrity of control and command signals.
  • Corrosion prevention: Because it does not emit corrosive gases during combustion, it protects sensitive electronic equipment.
  • Regulatory compliance: It meets the requirements of NBR 16442, guaranteeing a high-quality and high-performance product.

Applications

  • Industrial automation: Used in control, command, and signaling circuits for microprocessor-based equipment and systems.
  • Substations and power plants: Ideal for the automation and control of power plants and energy substations.
  • Building installations: Recommended for locations with large concentrations of people, such as hospitals, shopping malls, and airports.
  • Chemical and petrochemical industry: Application in harsh environments that require resistance to chemical agents.
  • Electrical panels: Perfect for connecting machines, pushbuttons, and powering control panels.
  • Cabling systems: Used in fixed installations such as conduits, raceways, cable trays and cable ladders.
  • Critical equipment: Recommended for locations with sensitive equipment, where system reliability is essential.
  • Power supply circuits: According to NBR 5410, it is applied in safe electrical distribution and power supply circuits.
  • Industrial instrumentation: Connecting sensors, actuators, and other devices in industrial processes.
  • Engineering projects: A versatile solution for various fixed electrical installations in indoor and outdoor environments.
TECHNICAL DATA
General information
BrandINNOVCABLE
Product typeBTC ATOX control cable with HEPR insulation and SHF1 sheath, halogen-free and with low smoke emission.
Electrical Parameters
Insulation VoltageUp to 1,0 mm²: 500 V | From 1,50 mm² to 10,00 mm²: 1000 V
Routine TestsElectrical resistance of the conductor at 20°C, Alternating current voltage, Insulation resistance.
Product Design
Conductor MaterialBare electrolytic copper wires, soft temper.
Driver DesignClass 5 stringing, according to NBR NM 280.
Base Material for Vein IsolationEthylene propylene rubber (HEPR) compound.
SeparatorPolyester tape.
Intermediate Cover Base MaterialHalogen-free, flame-retardant thermoplastic compound (SHF1).
ShieldedYes, shielding made of bare copper braid.
Separation TapeNon-hygroscopic tape over the shielding.
Base Material for the External CoveringHalogen-free, flame-retardant thermoplastic compound (SHF1).
Abbreviation for Roofing MaterialSHF1
Cover ColorBlack.
Road IdentificationBlack or white veins numbered sequentially.
Road color codeIt can be constructed with colored veins upon request.
Includes protective conductor (ground).Available with a green lane (protective driver) upon customer request.
Cable FormatRound.
Product characteristics
Application AreaFixed installations in control, command and signaling circuits of electrical equipment, structured cabling, substation automation, industrial areas, chemical plants, power plants, among others with a large concentration of people.
Temperature, fixed installationMaximum temperature in steady state: +90 °C.
Maximum temperature in the driver+90 °C.
Maximum short-circuit temperature250 °C (duration of 5s).
Flame retardantYes, in accordance with NBR NM IEC 60332-3-23 (Category B).
Low smoke emissionYes.
Halogen-freeYes, it does not emit corrosive gases during combustion.
UV resistantYes.
Chemical resistantResistant to certain chemicals.
Weather and moisture resistanceYes.
Electromagnetic ProtectionYes, it has protection against electromagnetic interference (EMV).
Applicable Standards
ABNT NBR 16442Halogen-free, low-smoke control cables for voltages up to 1 kV.
ABNT NBR NM 280Insulated cable conductors.
ABNT NBR NM IEC 60332-3-23Vertical flame burning test on bundles of wires and cables (Category B).
ABNT NBR 6251Power cables with extruded insulation for voltages from 1 kV to 35 kV.
NBR 5410 / NBR 13570Installation guidelines for locations with large concentrations of people.
DIMENSIONAL TABLE



Nominal Section (mm²)Number of DriversExternal Diameter (mm)Nominal Weight (kg/km)
0,5028,53113,72
0,5038,80129,05
0,5049,61165,49
0,5059,76181,41
0,50610,29196,39
0,50710,29205,40
0,50810,84222,58
0,50912,33262,76
0,501012,74283,19
0,501112,74290,86
0,501212,95306,54
0,501313,41326,83
0,501413,41334,18
0,501513,92359,04
0,501613,92366,11
0,501714,45386,56
0,501814,45393,18
0,501914,45399,93
0,502015,20429,75
0,502115,73445,60
0,502215,73456,42
0,502315,73471,64
0,502415,73477,91
0,502515,73492,97
0,7528,95126,04
0,7539,25145,17
0,75410,16187,87
0,75510,33207,08
0,75610,92225,77
0,75710,92236,91
0,75811,53259,46
0,75913,16305,17
0,751013,61329,43
0,751113,61340,48
0,751213,82360,12
0,751314,33384,23
0,751414,33394,91
0,751514,91423,60
0,751614,91433,97
0,751715,50458,25
0,751815,50468,11
0,751915,50478,12
0,752016,32512,53
0,752116,91532,18
0,752216,91546,22
0,752316,91564,65
0,752416,91574,11
0,752516,91592,37
1,0029,31137,25
1,0039,64159,95
1,00410,63208,37
1,00510,81230,76
1,00611,46252,97
1,00711,46268,88
1,00812,12293,78
1,00913,86344,57
1,001014,35372,47
1,001114,35386,75
1,001214,56410,14
1,001315,12437,86
1,001415,12451,75
1,001515,74484,08
1,001615,74497,61
1,001716,39525,53
1,001816,39538,51
1,001916,39551,66
1,002017,26590,34
1,002117,91613,62
1,002217,91630,75
1,002317,91652,29
1,002417,91664,84
1,002517,91686,19
1,5029,87156,27
1,50310,24185,28
1,50411,36243,41
1,50511,57271,48
1,50612,30299,94
1,50712,30321,85
1,50813,05353,36
1,50914,95412,82
1,501015,51447,13
1,501115,51467,19
1,501215,72497,18
1,501316,35531,29
1,501416,35550,91
1,501517,06589,65
1,501617,06608,88
1,501717,79643,21
1,501817,79661,81
1,501917,79680,59
1,502018,75726,70
1,502119,48756,35
1,502219,48779,07
1,502319,48806,19
1,502419,48824,30
1,502519,48851,20
2,50211,60209,58
2,50312,11255,43
2,50413,62340,71
2,50513,90383,72
2,50614,89428,83
2,50714,89466,63
2,50815,91515,85
2,50918,34599,43
2,501019,10650,90
2,501119,10686,18
2,501219,31733,88
2,501320,17785,07
2,501420,17819,76
2,501521,13875,67
2,501621,13909,82
2,501722,11961,32
2,501822,11994,62
2,501922,111028,19
2,502023,351094,55
2,502124,341141,27
2,502224,341178,60
2,502324,341220,32
2,502424,341252,96
2,502524,341294,39
4,00212,89263,27
4,00313,47324,70
4,00415,19433,96
4,00515,51491,01
4,00616,63551,52
4,00716,63604,14
4,00817,79669,65
4,00920,49773,82
4,001021,35841,05
4,001121,35890,57
4,001221,56954,01
4,001322,531020,86
4,001422,531069,65
4,001523,621141,28
4,001623,621189,41
4,001724,741256,64
4,001824,741303,75
4,001924,741351,18
4,002026,111435,04
4,002127,231497,37
4,002227,231548,42
4,002327,231603,86
4,002427,231650,15
4,002527,231705,24
10,00216,60468,61
10,00317,43604,90
10,00419,91814,72
10,00520,37941,90
10,00621,991076,75
10,00721,991201,90
10,00823,661344,43
10,00927,381539,40
10,001028,621682,11
10,001128,621802,43
10,001228,831941,68
10,001330,232083,74
10,001430,232202,93
10,001531,792349,97
10,001631,792468,13
10,001733,412610,77
10,001833,412727,37
10,001933,412844,46
10,002035,303009,84
10,002136,923147,28
10,002236,923267,55
10,002336,923392,21
10,002436,923507,54
10,002536,923631,67
RELATED PRODUCTS

SHIPPING AND DELIVERY TIMES

Shipping and Delivery Times – FAQ

Q: How does product shipping work?

A: We ship throughout Brazil. We work with the Post Office (SEDEX and PAC) and several partner carriers. When you finalize your purchase, our system calculates and presents the best shipping options available for your zip code, based on the weight and dimensions of your order.

Q: What is the delivery time for my order?

A: Our total delivery time is the sum of two stages: Availability Time + Carrier Time.

  • Availability Period:

    • Products in Stock: If the product is in stock, it will be shipped within 2 business days.

    • Products Made to Order: To ensure maximum quality and flexibility, many of our cables are made to order . In these cases, the production and shipping time is 15 business days.

  • Carrier's deadline:

    • This is the time it takes for the shipping to reach you after we dispatch it. This timeframe is shown when calculating shipping costs in your shopping cart.

Therefore, for a product that is in production, the total estimated delivery time will be 15 business days plus the shipping time.

Q: Why the 15 business day production lead time? What if there are delays?

A: Our on-demand production model allows us to offer superior industrial-quality cables, in the exact length you need, and at extremely competitive prices. As a manufacturing unit, our production process involves several variables, such as receiving raw materials and operating complex machinery. We understand that unforeseen events can occur. Should any event arise that could impact the 15-business-day timeframe, our team will proactively contact you to keep you informed of the new schedule. We are committed to complete transparency throughout the entire process.

Q: Can I cancel an order that is already in production?

A: For products manufactured on demand (make-to-order model), we do not accept cancellations once the order enters our production line. This is because, to ensure speed and competitive pricing, the raw materials for your cable are separated and allocated, and the manufacturing process begins immediately after payment confirmation. Please review your order carefully before finalizing it. If you have any questions, please contact our team.

Shipping Costs

Q: How is the shipping cost calculated?

A: The value is automatically calculated in your shopping cart, based on the total weight of the products, the dimensions of the packaging, and the destination zip code entered.

Q: Do you offer free shipping?

A: We don't currently have a fixed free shipping policy. Occasionally, we may run specific promotions. The most accurate way to check the cost for your location is to add the desired products and your zip code to your cart.

Warranty and Returns

Q: What is the return and exchange policy?

A: According to our policy and the Consumer Protection Code, we accept returns due to buyer's remorse or manufacturing defects within 7 (seven) calendar days of receiving the product. To initiate the process, please contact our Customer Service Center via email. ecommerce@innovcable. Com.br Please provide the order number and reason for the return. The product must be returned in its original packaging, undamaged and showing no signs of misuse. We emphasize that this return policy remains valid and unchanged after receipt.

Q: Do the products have a warranty?

A: Yes. All cables in our product line are guaranteed against manufacturing defects. The specific warranty period can be found on each product page. The warranty does not cover damage caused by incorrect installation, misuse, or natural wear and tear from use.

COIL1 (1)
COIL 2
empilhadeira

Loading and Transportation

1. When lifting with a crane, the correct rope must be used, attached to an axle located in the center of the coil.

* Heads up:
– Move it as close to the ground as possible.
Move slowly and, once in the correct position, do not stop abruptly.

2- In the case of a forklift, the drums must not be damaged by the forklift.

* Heads up:
Place the coil in the center of the fork.
The width of the fork must be greater than the spool.

Transportation and unloading

✽ Precautions when handling cables:
• Do not cover the coils.
• Do not roll more than 20 m.
• Do not use sharp objects when moving.
• Do not roll a damaged coil.
• Do not roll on uneven surfaces.
• Do not store the coil near heaters or flammable materials.


Checks when handling cables – Storage

• Do not remove the protective materials and packaging that protect the reels and cables until they are used.
• Store in a protected or enclosed location to protect against damage from machinery.
• Store in a suitable, closed storage location for extended periods. (Coils and packaging should be kept in a dry place.)
• Seal both ends of the remaining cables on the reels using heat-shrink tubing to prevent moisture absorption.
