Power and Control Cable; 0,6/1 kV; 2 to 61 conductors; max. 4,00 mm²; LSZH; HEPR / PUR-AC, Flame and oil resistant; +90°C

Halogen-free PUR LiHC11Y polyurethane control/command cable

Rodent protection?

Provides extra protection against rodents and termites. The price will be updated in your cart.

Green Way Terra Protection?

Configure one of the cable wires to be green for grounding. The value will be updated in the cart.

💡 Add to cart — Immediate purchase. The discount for your volume bracket is automatically applied, and you complete the order online.
📋 Add to quote request Our team will analyze and get back to you with a proposal. Ideal for large volumes, special deadlines, or when you need to add cables that are not available for sale online.

LiHC11Y Control Cable: Performance for Industrial AutomationDeveloped for the most critical industrial applications, it guarantees signal transmission with maximum fidelity. Its robust construction offers protection, durability, and flexibility to keep your operations running smoothly, without unexpected downtime and with complete confidence.
  • Pure and Reliable Signal: Superior shielding that blocks electromagnetic interference, ensuring the accuracy of your equipment and data.
  • Unmatched Durability: PUR coating resistant to oils, chemicals, UV rays, and abrasion for harsh environments.
  • Total Versatility: Ideal for indoor or outdoor use, in fixed or continuously moving installations.
  • Simplified Installation: Extreme flexibility that facilitates assembly in complex spaces, optimizing your time.
  • Safety first: Halogen-free and with low smoke emission, protecting lives and equipment.

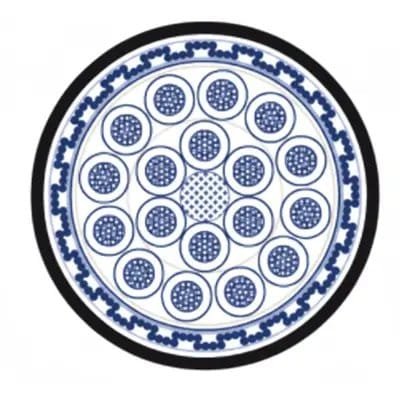

PRODUCT DESIGN
  • Conductors: bare copper conductors class 5 according to EN 60228
  • Insulation: special halogen-free compound
  • Roadway identification: colors according to DIN 47100
  • Route layout: twisted routes together or pairs twisted together
  • Shielding: tinned copper wire braid with ≥85% coverage
  • External coating: special PUR compound, resistant to oils (EN 60811-404), resistant to hydrocarbons, industrial refrigerants and UV radiation, flame retardant and halogen-free (according to EN 60332-1-2, EN 60754); color: gray
DETAILS

Benefits

  • High Flexibility: Constructed with class 5 conductors, ideal for mobile installations and small bending radii.
  • Superior EMC Protection: Shielding with tinned copper braid ensures signal transmission free from electromagnetic interference.
  • Chemical and Oil Resistance: External coating in PUR (polyurethane) resistant to oils, hydrocarbons and industrial refrigeration fluids.
  • Enhanced Security: Halogen-free compound, flame retardant and with low smoke emission, increasing safety.
  • Internal and External Use: The special PUR coating offers resistance to UV rays, allowing for installation in outdoor environments.
  • Wide Temperature Range: Reliable operation across a wide temperature range, from -40°C to +80°C in fixed installations.
  • High Mechanical Durability: The robust PUR coating offers excellent protection against abrasion, tearing and mechanical stress.
  • Versatile Installation: Perfect for fixed installations and mobile connections in dry or humid industrial environments.

Applications

  • Industrial Automation: Control and signaling circuits in control engineering systems and production lines.
  • Machine Tools: Connecting sensors and actuators in industrial equipment operating in environments containing oils and chemicals.
  • Measurement Systems: Precise transmission of analog and digital signals for instrumentation and measurement technology.
  • Mobile Equipment: Power supply and control of portable devices and equipment that require constant movement.
  • Control Panels: Internal wiring of control, distribution and command panels in various industrial applications.
  • Electronic Engineering: Ideal for electronic control systems that require protection against electromagnetic interference.
  • External Equipment: Applications installed outdoors, where resistance to UV rays and weathering is essential.
  • Industry in General: A robust and reliable solution for control circuits in any industrial application.
TECHNICAL DATA



General information
BrandINNOVCABLE
Product typeFlexible, shielded, halogen-free control cable with PUR sheathing and color-coded conductors.
Electrical Parameters
Nominal VoltageUo/U: 300/500 V
Test Voltage3000 V
Insulation Resistance20 MΩ x km
Maximum Capacitance (Vein/Vein)150pF/m
Maximum Capacitance (Vein/Shield)270pF/m
Approximate Inductance0,65 mH/km
Product Design
Conductor MaterialBare copper wires.
Driver ClassClass 5, according to EN 60228.
Base Material for Vein IsolationSpecial halogen-free compound.
Road IdentificationColors, according to DIN 47100.
Layout of the RoadsTwisted paths together or twisted pairs together.
shieldingTin-plated copper wire mesh with ≥85% coverage.
Base Material for the External CoveringSpecial PUR compound.
Cover ColorAsh.
Product characteristics
Application AreaControl and signaling circuits, industrial applications, measurement technology, analog and digital signal transmission. For fixed installations and mobile/portable devices.
For continuous bendingYes.
Minimum Radius of Curvature (flexible)10 x cable diameter
Minimum Radius of Curvature (fixed)5 x cable diameter
Temperature, fixed installation-40°C to 80°C.
Temperature, constant movement-5°C to 80°C.
EMC ProtectionYes, the shielding offers protection against external electromagnetic fields (approximately 50 dB).
Flame retardantYes, according to EN 60332-1-2.
UV resistantYes.
Chemical resistantYes, it is resistant to hydrocarbons and industrial refrigerants.
Halogen-freeYes, according to EN 60754.
Low smoke emissionYes, according to EN 61034.
Oil resistantYes, in accordance with EN 60811-404.
Application in outdoor environmentYes.
Indoor applicationYes, in both dry and humid locations.
Applicable Standards
ConductorEN 60228 (Class 5)
Road identificationDIN 47100
Flame retardantEN 60332-1-2
Halogen-freeEN 60754
Low smoke emissionEN 61034
Oil resistanceEN 60811-404
DirectivesLVD 2014/35/EU, RoHS 2015/863/EU, CPR 305/2011 (EN 50575)



DIMENSIONAL TABLE
nx mm²Outer diameter* [mm]
Approximate cable weight [kg/km]
2 x 0,55,443
3 x 0,55,748
4 x 0,56,157
5 x 0,56,872
6 x 0,57,484
7 x 0,57,488
8 x 0,58,1101
10 x 0,59,8136
12 x 0,59,8144
14 x 0,510,2162
16 x 0,510,7182
18 x 0,511,5207
19 x 0,511,5211
21 x 0,512231
25 x 0,513,9295
27 x 0,513,9300
30 x 0,514,3325
34 x 0,515,4375
37 x 0,515,4385
40 x 0,516,3430
42 x 0,517,5460
50 x 0,518,2530
56 x 0,518,9575
61 x 0,519,5615
2 x 0,755,850
3 x 0,756,157
4 x 0,756,873
5 x 0,757,488
6 x 0,758104
7 x 0,758109
8 x 0,759,1133
10 x 0,7510,6170
12 x 0,7510,6181
14 x 0,7511,3209
16 x 0,7511,9235
18 x 0,7512,5260
19 x 0,7512,5265
21 x 0,7513,2305
25 x 0,7515,1370
27 x 0,7515,1380
30 x 0,7516425
34 x 0,7517,2490
37 x 0,7517,2505
40 x 0,7517,7545
42 x 0,7519,3590
50 x 0,7520,1675
56 x 0,7520,7735
61 x 0,7521,5795
2 x 1,06,156
3 x 1,06,466
4 x 1,07,285
5 x 1,07,8103
6 x 1,08,4122
7 x 1,08,4129
8 x 1,09,6156
10 x 1,011,4205
12 x 1,011,4219
14 x 1,011,9247
16 x 1,012,8290
18 x 1,013,6325
19 x 1,013,6335
21 x 1,014,2365
25 x 1,016,4450
27 x 1,016,4465
30 x 1,017510
34 x 1,018,4590
37 x 1,018,4610
40 x 1,019660
42 x 1,020,5705
50 x 1,021,5820
56 x 1,022,2890
61 x 1,022,8955
2 x 1,57,176
3 x 1,57,591
4 x 1,58,2115
5 x 1,59,3145
6 x 1,510172
7 x 1,510182
8 x 1,511212
10 x 1,513,3290
12 x 1,513,3310
14 x 1,514,1355
16 x 1,514,9400
18 x 1,516460
19 x 1,516470
21 x 1,516,8515
25 x 1,519,1625
27 x 1,519,1645
30 x 1,519,7705
34 x 1,521,4820
37 x 1,521,4850
40 x 1,522,2915
42 x 1,523,9980
50 x 1,525,31150
56 x 1,526,11255
61 x 1,526,81345
2 x 2,58,2104
3 x 2,59,1134
4 x 2,59,9169
5 x 2,510,7206
6 x 2,511,9252
7 x 2,511,9265
10 x 2,516,2430
12 x 2,516,2465
14 x 2,516,9525
16 x 2,517,8595
18 x 2,519670
21 x 2,519,9755
25 x 2,522,7920
30 x 2,523,51040
34 x 2,525,71220
37 x 2,525,71270
42 x 2,528,71465
50 x 2,529,91695
2 x 4,09,9159
3 x 4,010,5197
4 x 4,011,7255
5 x 4,012,9325
7 x 4,014,2420
10 x 4,019,1645
12 x 4,019,1705
2x2x0,57,777
3x2x0,59,2104
4x2x0,59,9124
5x2x0,510,6151
6x2x0,510,9161
7x2x0,512,4191
8x2x0,512,9211
10x2x0,514253
12x2x0,514,8285
14x2x0,516,1335
16x2x0,517,2385
18x2x0,517,9410
20x2x0,518,6455
24x2x0,519,1515
2x2x0,758,590
3x2x0,759,9125
4x2x0,7510,7151
5x2x0,7511,7191
6x2x0,7512,1206
7x2x0,7513,6242
8x2x0,7514,2265
10x2x0,7515,2310
12x2x0,7516,6375
14x2x0,7517,5420
16x2x0,7518,9480
18x2x0,7519,7535
20x2x0,7520,3570
24x2x0,7520,9635
2x2x1,09,4126
3x2x1,010,5144
4x2x1,011,5181
5x2x1,012,4221
6x2x1,012,8240
7x2x1,014,4280
8x2x1,015,1310
10x2x1,016,5380
12x2x1,017,6440
14x2x1,018,8505
16x2x1,020,1575
18x2x1,020,9625
20x2x1,021,8690
24x2x1,022,4795
2x2x1,510,7161
3x2x1,512,2195
4x2x1,513,2239
5x2x1,514,4300
6x2x1,514,9325
7x2x1,517390
8x2x1,517,8430
10x2x1,519,2520
12x2x1,520,5605
14x2x1,521,9700
16x2x1,523,4795
18x2x1,524,8885
20x2x1,525,6965
24x2x1,526,31110
2x2x2,512,7229
3x2x2,514,4275
4x2x2,516350
5x2x2,517,2435
6x2x2,517,8480
7x2x2,520,2560
8x2x2,521,1625
10x2x2,522,8760
12x2x2,524,3885
14x2x2,526,31030
16x2x2,528,11180
