BFIC Individual and Collective Shielding Instrumentation

Shielded instrumentation cable, individually and collectively.

Instrumentation Cable; Shielded with Individual and Collective Tape; Max. 2,50 mm²; 300 V; 1 to 56 pairs or triples; Numbered Conductors; PVC/PVC; Flame Retardant; +70°C

DOWNLOAD DATASHEET

Shielded Instrumentation Cable in Individual and Collective Tape (BFIC) 300V NBR 10300

Number of Drivers:

1

2

3

4

5

6

7

8

10

12

14

15

16

18

20

22

24

25

26

28

30

32

34

35

36

38

40

42

Construction:

By

Terna

Quadra

Section (mm²):

0,50

0,75

1,00

1,50

2,50

Clean

Rodent protection?

Yes, add Rodent Protection (+30%) (+R$0,30)

Provides extra protection against rodents and termites. The price will be updated in your cart.

💡 Add to cart — Immediate purchase. The discount for your volume bracket is automatically applied, and you complete the order online.
📋 Add to quote request Our team will analyze and get back to you with a proposal. Ideal for large volumes, special deadlines, or when you need to add cables that are not available for sale online.

BFIC Instrumentation Cable: Reliability and Protection for Your IndustryDesigned for the most demanding industrial applications in automation, control, and instrumentation. This cable ensures maximum reliability in signal transmission, protecting your operations against losses and electromagnetic interference.

Superior Double Armor: Maximum protection against electromagnetic interference and crosstalk, ensuring the total purity of your signal.
Exceptional Electrical Performance: Composed of 100% pure copper, it offers lower ohmic resistance and dielectric loss for precise signals.
Robust and Reliable: Excellent flexibility and resistance to chemicals, moisture, and UV rays, ideal for industrial environments.
Safety first: Flame-retardant and self-extinguishing properties that do not propagate fire, meeting the most stringent standards.
Wide Application Compatibility: Perfect for analog (4-20mA) and digital signals, Hart protocol, sensors, and industrial automation systems.

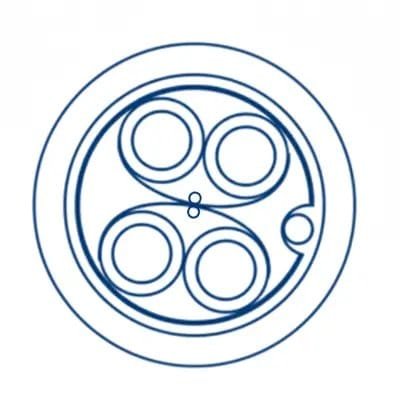

PRODUCT DESIGN

Stranded conductor made of bare electrolytic copper wires, soft temper, stranding class 2 NBR NM 280.
Insulation made of thermoplastic compound based on polyvinyl chloride (PVC/A).
Meeting of drivers in pairs, trios, or groups of four.
Twist pitch: 50 to 65mm
Individual shielding with aluminized polyester tape, with a flexible drain conductor of 0.5 mm² cross-section, formed by tinned electrolytic copper wires.
Separator made of polyester tape and collective shielding made of aluminized polyester tape, with a flexible drain conductor of 0,5 mm² cross-section, formed by tinned electrolytic copper wires.
Communication cable consisting of a stranded conductor with a cross-section of 0,50 mm², insulation in (PVC/A), blue color (when applied).
Thermoplastic compound coating based on polyvinyl chloride (PVC/ST1) in black.

DETAILS

Benefits

Upper Signal: Individual and collective shielding that offers maximum protection against interference and crosstalk.
Enhanced Security: A compound with flame-retardant properties that does not propagate fire and increases the safety of installations.
High Durability: Excellent resistance to chemicals, moisture, and UV rays, ensuring a long service life in harsh environments.
Easy Installation: Great flexibility that allows for easy assembly, even in locations with restricted access or winding paths.
Signal Reliability: Ideal for Hart protocol and (4-20mA) signals, ensuring accurate and stable communication.
Pure Conductivity: Manufactured with pure electrolytic copper, resulting in lower electrical resistance and maximum transmission efficiency.
National Product: Cable 100% manufactured in Brazil, guaranteeing quality and compliance with current technical standards (NBR 10300).
Efficient Insulation: PVC/A insulation rated for 70°C, ensuring conductor integrity and cable electrical performance.
Superior Versatility: Customized manufacturing options to meet the specific needs of each industrial project.
Stable Performance: Low dielectric loss ensures the quality of the transmitted signal over long distances without degradation.

Applications

Industrial Automation: Connecting sensors, meters, and actuators in production lines for precise process control.
Field Instrumentation: Transmission of analog (4-20mA) and digital signals between instruments and control rooms.
Systems with Hart Protocol: Used for point-to-point communication in intelligent instrumentation systems and transmitters.
Control Panels: Connecting relays, contactors, and other electronic devices in control and distribution panels.
Process Industries: Ideal for chemical, petrochemical, pulp and paper, and food processing plants due to its robustness.
Sugar and Ethanol Plants: Suitable for use in harsh industrial environments, resistant to chemical agents and temperature variations.
Measurement Systems: Connection of flow, pressure, temperature and level meters in various types of industrial plants.
Fixed Installations: Perfect for industrial infrastructures that require a fixed, secure, and reliable cabling solution.
Machinery and Equipment: Interconnection of electronic components and sensors in industrial equipment in general.
Engineering Projects: A versatile solution for engineers and designers in new installations or plant modernization.

TECHNICAL DATA

General information
Brand	INNOVCABLE
Product type	Instrumentation cable with individual and collective shielding (BFIC), 300V, according to NBR 10300.
Electrical Parameters
Insulation Voltage	300V
Maximum Electrical Resistance of the Conductor	Varies according to the section: 37,08 Ω/km (0,50 mm²), 25,24 Ω/km (0,75 mm²), 18,64 Ω/km (1,00 mm²), 12,46 Ω/km (1,50 mm²), 7,63 Ω/km (2,50 mm²)
Insulation Resistance (20°C)	Varies according to the section: 55 MΩ/km (0,50 mm²), 47 MΩ/km (0,75 mm²), 43 MΩ/km (1,00 mm²), 37 MΩ/km (1,50 mm²), 40 MΩ/km (2,50 mm²)
Maximum Capacitance	Varies according to the section: 150 nF/km (0,50 mm²), 169 nF/km (0,75 mm²), 180 nF/km (1,00 mm²), 199 nF/km (1,50 mm²), 188 nF/km (2,50 mm²)
Maximum Inductance	Varies according to the section: 0,34 mH/km (0,50 mm²), 0,32 mH/km (0,75 mm²), 0,31 mH/km (1,00 mm²), 0,29 mH/km (1,50 mm²), 0,30 mH/km (2,50 mm²)
Product Design
Conductor Material	Bare electrolytic copper wires, soft temper. (Tin-plated copper option available upon request)
Driver Class	Class 2 stringing according to NBR NM 280. (Class 5 option available upon request)
Vein Isolation	Thermoplastic compound based on polyvinyl chloride (PVC/A).
External Cover	Thermoplastic compound based on polyvinyl chloride (PVC/ST1).
Cover Color	Black.
shielding	Individual shielding (aluminized polyester tape with 0,5mm² tinned copper drain wire) and collective shielding (aluminized polyester tape with 0,5mm² tinned copper drain wire).
Drivers' Meeting	Pairs, trios, or quads.
Twisting Step	50 to 65mm.
Separator	Polyester tape.
Communication Cable	0,50mm² conductor with blue PVC/A insulation (when applied).
Road Color Code	Pairs: Black and White. Suits: Black, White, and Red.
Product characteristics
Application Area	Fixed installations for transmitting analog (4-20mA) and digital signals, point-to-point instrumentation, Hart protocol, connection of sensors and meters in industrial environments.
Maximum Temperature in the Conductor	70°C in continuous operation.
Flame Retardant	Yes, it is flame retardant and self-extinguishing according to NBR NM IEC 60332-3-23, category B.
UV resistant	Yes.
Chemical Resistant	Yes, resistant to chemicals and moisture. (Special PVC option resistant to oils and greases available upon request).
Protection against interference	Recommended for locations requiring high levels of protection against electromagnetic interference and crosstalk.
Flexibility	Excellent flexibility.
Applicable Standards
ABNT NBR 10300	Instrumentation cables with extruded PE or PVC insulation for voltages up to 300 V.
ABNT NBR NM 280	Insulated cable conductors.
ABNT NBR NM IEC 60332-3-23	Vertical flame propagation test on conductors and cables in bundles - Category B.
ABNT NBR 6812	Electrical wires and cables - Vertical burning (bonfire).
ABNT NBR 6251	Power cables with extruded insulation for voltages from 1 kV to 35 kV.

DIMENSIONAL TABLE

Type	Nominal Section (mm²)	Maximum Electrical Resistance (Ω/km)	Capacitance (nF/Km)	Inductance (mH/km)	Insulation Resistance (MΩ/km at 20°C)
Even	0,5	37,08	150	0,34	55
suits	0,5	37,08	150	0,34	55
Even	0,75	25,24	169	0,32	47
suits	0,75	25,24	169	0,32	47
Even	1	18,64	180	0,31	43
suits	1	18,64	180	0,31	43
Even	1,5	12,46	199	0,29	37
suits	1,5	12,46	199	0,29	37
Even	2,5	7,63	188	0,3	40
suits	2,5	7,63	188	0,3	40

Type	Nominal Section (mm²)	Number	External Diameter (mm)	Nominal Weight (Kg/Km)
Even	0,5	2	7,12	83,66
Even	0,5	3	10,56	130,51
Even	0,5	4	10,98	160,1
Even	0,5	5	11,45	185,65
Even	0,5	6	12,53	215,89
Even	0,5	7	13,3	243,72
Even	0,5	8	14,03	275,7
Even	0,5	9	14,93	315,28
Even	0,5	10	15,56	338,1
Even	0,5	11	16,19	360,9
Even	0,5	12	16,76	392,11
Even	0,5	13	17,33	414,47
Even	0,5	14	18,08	459,35
Even	0,5	15	18,61	481,73
Even	0,5	16	19,12	512,75
Even	0,5	17	19,6	534,66
Even	0,5	18	20,09	556,7
Even	0,5	19	20,54	587,27
Even	0,5	20	21,21	624,66
Even	0,5	21	21,64	650,88
Even	0,5	22	22,07	681,51
Even	0,5	23	22,49	703,17
Even	0,5	24	22,9	733,63
Even	0,5	25	23,12	862,02
suits	0,5	2	9,14	115,71
suits	0,5	3	10,56	155,61
suits	0,5	4	12,21	206,51
suits	0,5	5	13,18	244,06
suits	0,5	6	14,19	277,46
suits	0,5	7	15,3	322,7
suits	0,5	8	16,15	364,31
suits	0,5	9	16,96	405,62
suits	0,5	10	17,92	447,17
suits	0,5	11	18,65	479,45
suits	0,5	12	19,34	520,27
suits	0,5	13	20,2	562,63
suits	0,5	14	20,83	607,72
suits	0,5	15	21,44	639,41
suits	0,5	16	22,04	679,74
suits	0,5	17	22,61	711,11
suits	0,5	18	23,33	754,32
suits	0,5	19	23,92	794,98
suits	0,5	20	24,32	829,46
suits	0,5	21	24,91	865,7
suits	0,5	22	25,3	904,57
suits	0,5	23	25,89	936,42
suits	0,5	24	26,5	989,35
suits	0,5	25	27,09	1025,91
Even	0,75	2	7,63	98,64
Even	0,75	3	11,63	160,11
Even	0,75	4	12,08	196,24
Even	0,75	5	12,61	228,4
Even	0,75	6	13,57	259,13
Even	0,75	7	14,63	301,28
Even	0,75	8	15,44	340,23
Even	0,75	9	16,2	378,85
Even	0,75	10	16,9	408,18
Even	0,75	11	17,81	446,92
Even	0,75	12	44,9	2603,75
Even	0,75	13	19,07	514,09
Even	0,75	14	19,66	556,15
Even	0,75	15	20,25	584,99
Even	0,75	16	21,03	633,6
Even	0,75	17	21,55	662,2
Even	0,75	18	22,1	690,96
Even	0,75	19	22,6	728,2
Even	0,75	20	23,1	761,01
Even	0,75	21	23,79	806,26
Even	0,75	22	24,27	843,55
Even	0,75	23	24,73	871,84
Even	0,75	24	25,19	908,93
Even	0,75	25	25,43	939,65
suits	0,75	2	7,84	125,31
suits	0,75	3	11,63	193,94
suits	0,75	4	12,08	241,35
suits	0,75	5	12,61	284,78
suits	0,75	6	13,57	326,79
suits	0,75	7	14,63	380,22
suits	0,75	8	15,44	430,45
suits	0,75	9	16,2	480,34
suits	0,75	10	16,9	520,95
suits	0,75	11	17,81	570,97
suits	0,75	12	18,44	620,25
suits	0,75	13	19,07	660,69
suits	0,75	14	19,66	714,03
suits	0,75	15	20,46	764,99
suits	0,75	16	21,03	814,03
suits	0,75	17	21,55	853,91
suits	0,75	18	22,1	893,95
suits	0,75	19	22,6	942,46
suits	0,75	20	23,31	998,92
suits	0,75	21	23,79	1043,08
suits	0,75	22	24,27	1091,64
suits	0,75	23	24,73	1131,21
suits	0,75	24	25,19	1179,57
suits	0,75	25	25,57	1272,62
Even	1	2	11,15	117,23
Even	1	3	12,35	182,68
Even	1	4	12,84	224,93
Even	1	5	13,41	263,24
Even	1	6	14,66	308,13
Even	1	7	15,58	349,37
Even	1	8	16,45	394,68
Even	1	9	17,49	448,88
Even	1	10	18,25	484,9
Even	1	11	19	520,89
Even	1	12	19,69	565,16
Even	1	13	20,58	611,52
Even	1	14	21,22	660,15
Even	1	15	21,86	695,57
Even	1	16	22,47	739,59
Even	1	17	23,04	774,41
Even	1	18	23,84	822,07
Even	1	19	24,38	865,8
Even	1	20	24,92	905,11
Even	1	21	25,44	944,2
Even	1	22	25,96	987,7
Even	1	23	26,67	1036,35
Even	1	24	27,16	1079,9
Even	1	25	27,42	1116,8
suits	1	2	8,27	145,47
suits	1	3	12,35	225,05
suits	1	4	12,84	281,42
suits	1	5	13,41	333,86
suits	1	6	14,66	392,87
suits	1	7	15,58	448,23
suits	1	8	16,45	507,66
suits	1	9	17,49	575,99
suits	1	10	18,25	626,12
suits	1	11	19	676,24
suits	1	12	19,69	734,64
suits	1	13	20,58	795,11
suits	1	14	21,22	857,88
suits	1	15	21,86	907,42
suits	1	16	22,47	965,56
suits	1	17	23,04	1014,5
suits	1	18	23,84	1076,28
suits	1	19	24,38	1134,13
suits	1	20	24,92	1187,57
suits	1	21	25,44	1240,79
suits	1	22	25,96	1298,41
suits	1	23	26,67	1361,18
suits	1	24	27,16	1418,85
suits	1	25	31,88	1527,33
Even	1,5	2	8,94	142,77
Even	1,5	3	13,28	215,24
Even	1,5	4	14,04	275,64
Even	1,5	5	14,67	325,03
Even	1,5	6	16,05	382,13
Even	1,5	7	17,08	434,79
Even	1,5	8	18,26	501,17
Even	1,5	9	19,19	557,94
Even	1,5	10	20,03	605,28
Even	1,5	11	21,09	663,8
Even	1,5	12	21,85	719,74
Even	1,5	13	22,62	766,84
Even	1,5	14	23,33	826,74
Even	1,5	15	24,25	886,3
Even	1,5	16	24,94	941,92
Even	1,5	17	25,58	988,26
Even	1,5	18	26,24	1034,82
Even	1,5	19	27,05	1104,12
Even	1,5	20	27,66	1154,95
Even	1,5	21	28,24	1205,53
Even	1,5	22	28,82	1260,51
Even	1,5	23	29,59	1322,17
Even	1,5	24	30,14	1377,19
Even	1,5	25	30,43	1425,15
suits	1,5	2	8,94	181,37
suits	1,5	3	13,49	280,28
suits	1,5	4	14,04	352,84
suits	1,5	5	14,88	429,41
suits	1,5	6	16,05	497,92
suits	1,5	7	17,08	569,88
suits	1,5	8	18,26	655,56
suits	1,5	9	19,19	731,63
suits	1,5	10	20,03	798,27
suits	1,5	11	21,09	876,08
suits	1,5	12	21,85	951,32
suits	1,5	13	22,62	1017,72
suits	1,5	14	23,33	1096,92
suits	1,5	15	24,25	1175,78
suits	1,5	16	24,94	1250,69
suits	1,5	17	25,58	1316,33
suits	1,5	18	26,24	1382,19
suits	1,5	19	27,05	1470,8
suits	1,5	20	27,66	1540,92
suits	1,5	21	28,24	1610,8
suits	1,5	22	28,82	1685,08
suits	1,5	23	29,38	1750,3
suits	1,5	24	30,14	1840,35
suits	1,5	25	35,18	1955,51
Even	2,5	2	10,74	206,26
Even	2,5	3	16,36	320,99
Even	2,5	4	17,05	399,45
Even	2,5	5	18,05	483,8
Even	2,5	6	19,5	559,8
Even	2,5	7	21	650,07
Even	2,5	8	22,22	733,74
Even	2,5	9	23,58	829,36
Even	2,5	10	24,63	903,37
Even	2,5	11	25,69	977,37
Even	2,5	12	26,85	1073,59
Even	2,5	13	27,81	1147,2
Even	2,5	14	28,7	1233,43
Even	2,5	15	29,8	1322,28
Even	2,5	16	30,66	1404,23
Even	2,5	17	31,45	1476,72
Even	2,5	18	32,48	1566,8
Even	2,5	19	33,24	1648,17
Even	2,5	20	34	1725,13
Even	2,5	21	34,72	1801,74
Even	2,5	22	35,66	1901,73
Even	2,5	23	36,35	1973,95
Even	2,5	24	37,04	2054,98
Even	2,5	25	37,41	2127,93
suits	2,5	2	10,74	268,13
suits	2,5	3	16,36	413,8
suits	2,5	4	17,26	532,35
suits	2,5	5	18,05	638,48
suits	2,5	6	19,5	745,42
suits	2,5	7	21	866,63
suits	2,5	8	22,22	981,23
suits	2,5	9	23,58	1107,79
suits	2,5	10	24,63	1212,74
suits	2,5	11	25,69	1317,67
suits	2,5	12	26,85	1444,82
suits	2,5	13	27,81	1549,37
suits	2,5	14	28,7	1666,54
suits	2,5	15	29,8	1786,33
suits	2,5	16	30,66	1899,21
suits	2,5	17	31,45	2002,63
suits	2,5	18	32,27	2106,37
suits	2,5	19	33,24	2235,96
suits	2,5	20	34	2343,86
suits	2,5	21	34,72	2451,4
suits	2,5	22	35,66	2582,32
suits	2,5	23	36,35	2685,49
suits	2,5	24	37,04	2797,45
suits	2,5	25	43,76	3013,99

Shipping and Delivery Times – FAQ

Q: How does product shipping work?

A: We ship throughout Brazil. We work with the Post Office (SEDEX and PAC) and several partner carriers. When you finalize your purchase, our system calculates and presents the best shipping options available for your zip code, based on the weight and dimensions of your order.

Q: What is the delivery time for my order?

A: Our total delivery time is the sum of two stages: Availability Time + Carrier Time.

Availability Period:
- Products in Stock: If the product is in stock, it will be shipped within 2 business days.
- Products Made to Order: To ensure maximum quality and flexibility, many of our cables are made to order . In these cases, the production and shipping time is 15 business days.
Carrier's deadline:
- This is the time it takes for the shipping to reach you after we dispatch it. This timeframe is shown when calculating shipping costs in your shopping cart.

Therefore, for a product that is in production, the total estimated delivery time will be 15 business days plus the shipping time.

Q: Why the 15 business day production lead time? What if there are delays?

A: Our on-demand production model allows us to offer superior industrial-quality cables, in the exact length you need, and at extremely competitive prices. As a manufacturing unit, our production process involves several variables, such as receiving raw materials and operating complex machinery. We understand that unforeseen events can occur. Should any event arise that could impact the 15-business-day timeframe, our team will proactively contact you to keep you informed of the new schedule. We are committed to complete transparency throughout the entire process.

Q: Can I cancel an order that is already in production?

A: For products manufactured on demand (make-to-order model), we do not accept cancellations once the order enters our production line. This is because, to ensure speed and competitive pricing, the raw materials for your cable are separated and allocated, and the manufacturing process begins immediately after payment confirmation. Please review your order carefully before finalizing it. If you have any questions, please contact our team.

Shipping Costs

Q: How is the shipping cost calculated?

A: The value is automatically calculated in your shopping cart, based on the total weight of the products, the dimensions of the packaging, and the destination zip code entered.

Q: Do you offer free shipping?

A: We don't currently have a fixed free shipping policy. Occasionally, we may run specific promotions. The most accurate way to check the cost for your location is to add the desired products and your zip code to your cart.

Warranty and Returns

Q: What is the return and exchange policy?

A: According to our policy and the Consumer Protection Code, we accept returns due to buyer's remorse or manufacturing defects within 7 (seven) calendar days of receiving the product. To initiate the process, please contact our Customer Service Center via email. ecommerce@innovcable. Com.br Please provide the order number and reason for the return. The product must be returned in its original packaging, undamaged and showing no signs of misuse. We emphasize that this return policy remains valid and unchanged after receipt.

Q: Do the products have a warranty?

A: Yes. All cables in our product line are guaranteed against manufacturing defects. The specific warranty period can be found on each product page. The warranty does not cover damage caused by incorrect installation, misuse, or natural wear and tear from use.

Loading and Transportation

1. When lifting with a crane, the correct rope must be used, attached to an axle located in the center of the coil.

* Heads up:
– Move it as close to the ground as possible.
Move slowly and, once in the correct position, do not stop abruptly.

2- In the case of a forklift, the drums must not be damaged by the forklift.

* Heads up:
Place the coil in the center of the fork.
The width of the fork must be greater than the spool.

Transportation and unloading

✽ Precautions when handling cables:
• Do not cover the coils.
• Do not roll more than 20 m.
• Do not use sharp objects when moving.
• Do not roll a damaged coil.
• Do not roll on uneven surfaces.
• Do not store the coil near heaters or flammable materials.

Checks when handling cables – Storage

• Do not remove the protective materials and packaging that protect the reels and cables until they are used.
• Store in a protected or enclosed location to protect against damage from machinery.
• Store in a suitable, closed storage location for extended periods. (Coils and packaging should be kept in a dry place.)
• Seal both ends of the remaining cables on the reels using heat-shrink tubing to prevent moisture absorption.

PRODUCTS/CATEGORIES >
