Instrumentation Cable; Shielded with Individual/Collective Tape and Steel Braid; Max. 2,50 mm²; 300 V; 1 to 56 pairs or triples; Numbered Cores; PVC / PVC / PVC; Flame Retardant; +70°C

Shielded Instrument Cable with Individual and Collective Tape (BFIC) / Steel Braid (TA) 300V NBR 10300

Rodent protection?

Provides extra protection against rodents and termites. The price will be updated in your cart.

💡 Add to cart — Immediate purchase. The discount for your volume bracket is automatically applied, and you complete the order online.
📋 Add to quote request Our team will analyze and get back to you with a proposal. Ideal for large volumes, special deadlines, or when you need to add cables that are not available for sale online.

BFIC TA Instrumentation Cable: Performance and Safety for Your Industry.Designed for signal transmission in critical processes where precision is vital. This cable ensures the integrity of your data with superior shielding and robust construction, eliminating failures and optimizing communication between your industrial equipment.
  • Double Shielding Against Interference: Individual and collective protection that cancels out electromagnetic noise and the "crosstalk" effect.
  • Superior Mechanical Strength: Galvanized steel mesh that protects against impacts and crushing, ensuring greater durability.
  • Maximum Conductivity and Efficiency: Made with 100% virgin and pure copper, ensuring lower ohmic resistance and perfect transmission.
  • Versatility for Industrial Applications: Ideal for analog (4-20mA), digital signals, Hart® protocol and various sensors.
  • Durability in Harsh Environments: Resistant to chemicals, moisture, UV rays, and with flame-retardant properties for maximum operational safety.

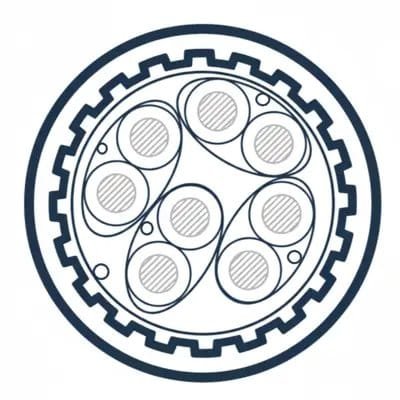

PRODUCT DESIGN
  • Stranded conductor made of bare electrolytic copper wires, soft temper, stranding class 2 NBR NM 280.
  • Insulation made of thermoplastic compound based on polyvinyl chloride (PVC/A).
  • Meeting of drivers in pairs, trios or quartets.
  • Twist pitch: 50 to 65mm
  • Individual shielding with aluminized polyester tape, with a flexible drain conductor of 0,5 mm² cross-section formed by tinned electrolytic copper wires.
  • Separator made of polyester tape and collective shielding made of aluminized polyester tape, with a flexible drain conductor of 0,5 mm² cross-section, formed by tinned electrolytic copper wires.
  • Communication cable consisting of a stranded conductor with a cross-section of 0,50 mm², insulation in (PVC/A), blue color (when applied).
  • Intermediate layer made of thermoplastic compound based on polyvinyl chloride (PVC/ST1).
  • Galvanized steel mesh.
  • Thermoplastic compound covering based on polyvinyl chloride (PVC/ST1).
DETAILS

Benefits

  • Superior signal protection: Double shielding (individual and collective) that eliminates interference and crosstalk.
  • High mechanical robustness: Galvanized steel mesh that protects against impacts and harsh environments.
  • Reliable transmission: Pure copper conductors ensure minimal signal loss and low electrical resistance.
  • Flame retardant safety: Self-extinguishing compound that does not propagate flames, in accordance with NBR NM IEC 60332-3-23.
  • High durability: Resistant to moisture, UV rays and various chemicals, ideal for industrial environments.
  • Easy installation: Good flexibility for installation in infrastructure and hard-to-reach locations.
  • Wide Compatibility: Perfect for analog (4-20mA), digital and Hart® protocol signals.
  • Certified quality: Manufactured in accordance with NBR 10300 standards and with ISO 9001 quality system.
  • Constructive versatility: Material options for insulation and roofing are available upon request.
  • Stable performance: Designed for fixed installations, ensuring continuous and secure communication.

Applications

  • Process control: Transmission of analog (4-20mA) and digital signals in industrial plants.
  • Field instrumentation: Connection of sensors, flow meters, pressure gauges, level gauges, and temperature gauges.
  • Industrial automation: Point-to-point system integration with communication via Hart® protocol.
  • Control panels: Safe power supply for relays, contactors, and other electronic devices.
  • Petrochemical industry: Fixed installations that require resistance to moisture and chemical agents.
  • Mining and steelmaking: Circuits with high demands for mechanical protection against abrasion and impacts.
  • Power generation: Signal transmission for monitoring and control in power plants and substations.
  • Paper And Cellulose: Suitable for use in humid environments and with corrosive elements.
  • Sanitation systems: Interconnection of sensors in water and wastewater treatment plants.
  • Manufacturing in general: Robust solution for fixed installations in various factory plants.
TECHNICAL DATA
General information
BrandINNOVCABLE
Product typeInstrumentation cable with individual and collective shielding, with steel braided armor.
CórdobaBFIC TA NBR 10300
Electrical Parameters
Insulation Voltage300V
Insulation Resistance (at 20°C)Varies by section (see details by section below).
CapacitanceVaries by section (see details by section below).
InductanceVaries by section (see details by section below).
Product Design
Conductor MaterialBare electrolytic copper wires, soft temper.
Driver ClassClass 2 stringing, according to NBR NM 280.
Base Material for Vein IsolationThermoplastic compound based on polyvinyl chloride (PVC/A).
Drivers' MeetingPairs, Trios or Quads.
Twisting Step50 to 65mm.
Road color codePairs: Black and White. Suits: Black, White, and Red.
Individual ProtectionAluminized polyester tape with flexible tinned copper drain conductor (0,5 mm²).
Collective ShieldingAluminized polyester tape with flexible tinned copper drain conductor (0,5 mm²).
Intermediate Cover Base MaterialThermoplastic compound based on polyvinyl chloride (PVC/ST1).
Armor / Mechanical ProtectionGalvanized steel mesh.
Base Material for the External CoveringThermoplastic compound based on polyvinyl chloride (PVC/ST1).
Communication Cable0,50mm² conductor with blue PVC/A insulation (when applied).
Product characteristics
Application AreaFixed installations for transmitting analog (4-20mA) and digital signals, point-to-point instrumentation, Hart® protocol, and connections of sensors and meters in industrial environments.
Protection against interferenceExcellent protection against external electromagnetic interference and maximum immunity against crosstalk.
Maximum Temperature in the Conductor70°C in continuous operation.
Flame retardantYes, it is flame retardant and self-extinguishing according to NBR NM IEC 60332-3-23, category B.
UV resistantYes.
Chemical resistantYes, it is resistant to chemicals and moisture.
Electrical Parameters by Nominal Section
Section 0,50 mm²Maximum Electrical Resistance: 37,08 Ω/km | Capacitance: 150 nF/km | Inductance: 0,34 mH/km | Resist. Insulation: 55 MΩ/km
Section 0,75 mm²Maximum Electrical Resistance: 25,24 Ω/km | Capacitance: 169 nF/km | Inductance: 0,32 mH/km | Resist. Insulation: 47 MΩ/km
Section 1,00 mm²Maximum Electrical Resistance: 18,64 Ω/km | Capacitance: 180 nF/km | Inductance: 0,31 mH/km | Resist. Insulation: 43 MΩ/km
Section 1,50 mm²Maximum Electrical Resistance: 12,46 Ω/km | Capacitance: 199 nF/km | Inductance: 0,29 mH/km | Resist. Insulation: 37 MΩ/km
Section 2,50 mm²Maximum Electrical Resistance: 7,63 Ω/km | Capacitance: 188 nF/km | Inductance: 0,30 mH/km | Resist. Insulation: 40 MΩ/km
Construction Options (Upon Request)
Optional DriverTin-plated copper.
Optional String Class5 class.
Optional Insulation MaterialsPVC/E (105°C), XLPE (90°C or 125°C), HEPR (90°C), PE (80°C).
Optional Cover and Backing MaterialsPE, PVC/E, PVC/ST2, special PVC (oil and grease resistant), LSZH (non-halogenated).
Optional Coverage FormatPerfectly cylindrical for classified areas (Ex).
Applicable Standards
Reference StandardsNBR 10300, NM-280, NM-IEC 60228, NBR NM IEC 60332-3-23 (Cat. B), NBR 6812, NBR 6251.
DIMENSIONAL TABLE
Nominal Section (mm²)TrainingNumber of ElementsExternal Diameter (mm)Nominal Weight (Kg/Km)Maximum Electrical Resistance (Ω/km)Capacitance (Nf/KM)Inductance (mH/Km)
Insulation Resistance (MΩ/km at 20ºC)
0,5Even211,35180,1737,081500,3455
0,5Even314,24247,6337,081500,3455
0,5Even414,61278,5337,081500,3455
0,5Even515,03305,8837,081500,3455
0,5Even615,81334,5337,081500,3455
0,5Even716,49366,1737,081500,3455
0,5Even817,56420,537,081500,3455
0,5Even918,18456,0637,081500,3455
0,5Even1018,75481,9137,081500,3455
0,5Even1119,52518,2737,081500,3455
0,5Even1220,03552,2937,081500,3455
0,5Even1320,54577,4837,081500,3455
0,5Even1421,02615,2737,081500,3455
0,5Even1521,49639,8437,081500,3455
0,5Even1621,95672,937,081500,3455
0,5Even1722,38696,5337,081500,3455
0,5Even1822,82720,4537,081500,3455
0,5Even1923,43765,2437,081500,3455
0,5Even2023,84793,1737,081500,3455
0,5Even2124,22820,7837,081500,3455
0,5Even2224,61852,7937,081500,3455
0,5Even2324,98875,6737,081500,3455
0,5Even2425,35907,3537,081500,3455
0,5Even2525,761049,337,081500,3455
0,5suits212,97194,8137,081500,3455
0,5suits314,24249,3837,081500,3455
0,5suits415,52288,4837,081500,3455
0,5suits516,39320,0737,081500,3455
0,5suits617,29350,3337,081500,3455
0,5suits718,1383,5837,081500,3455
0,5suits819,27440,3337,081500,3455
0,5suits920477,4237,081500,3455
0,5suits1020,67504,7837,081500,3455
0,5suits1121,53543,0737,081500,3455
0,5suits1222,15578,6537,081500,3455
0,5suits1322,73605,0637,081500,3455
0,5suits1423,29644,2537,081500,3455
0,5suits1523,84670,0537,081500,3455
0,5suits1624,37704,3337,081500,3455
0,5suits1724,88729,3537,081500,3455
0,5suits1825,34754,0237,081500,3455
0,5suits1926,08801,2637,081500,3455
0,5suits2026,43829,2837,081500,3455
0,5suits2126,96858,837,081500,3455
0,5suits2227,31891,0637,081500,3455
0,5suits2327,84916,0237,081500,3455
0,5suits2428,19948,1237,081500,3455
0,5suits2528,93990,737,081500,3455
0,75Even211,85200,0925,241690,3247
0,75Even315,0927925,241690,3247
0,75Even415,5316,4125,241690,3247
0,75Even515,98350,3725,241690,3247
0,75Even616,84386,3325,241690,3247
0,75Even717,61425,1125,241690,3247
0,75Even818,76487,8225,241690,3247
0,75Even919,45530,4625,241690,3247
0,75Even1020,09563,2725,241690,3247
0,75Even1120,93607,3725,241690,3247
0,75Even1221,5648,2825,241690,3247
0,75Even1322,07680,3625,241690,3247
0,75Even1422,6724,9725,241690,3247
0,75Even1523,14756,3525,241690,3247
0,75Even1623,65796,1925,241690,3247
0,75Even1724,12826,5225,241690,3247
0,75Even1824,62857,1825,241690,3247
0,75Even1925,28909,6425,241690,3247
0,75Even2025,73944,2625,241690,3247
0,75Even2126,17978,5225,241690,3247
0,75Even2226,61017,1825,241690,3247
0,75Even2327,011046,6825,241690,3247
0,75Even2427,431084,9725,241690,3247
0,75Even2527,861234,2925,241690,3247
0,75suits213,67220,9925,241690,3247
0,75suits315,09287,7225,241690,3247
0,75suits416,53336,5625,241690,3247
0,75suits517,5377,5325,241690,3247
0,75suits618,5417,5425,241690,3247
0,75suits719,41460,3725,241690,3247
0,75suits820,68528,0525,241690,3247
0,75suits921,49574,6425,241690,3247
0,75suits1022,24611,4125,241690,3247
0,75suits1123,18659,9225,241690,3247
0,75suits1223,87704,8325,241690,3247
0,75suits1324,52740,5325,241690,3247
0,75suits1425,15788,9525,241690,3247
0,75suits1525,76823,9725,241690,3247
0,75suits1626,35867,4325,241690,3247
0,75suits1726,92901,5725,241690,3247
0,75suits1827,44935,3225,241690,3247
0,75suits1928,24992,7825,241690,3247
0,75suits2028,631029,7525,241690,3247
0,75suits2129,221068,4125,241690,3247
0,75suits2229,621109,625,241690,3247
0,75suits2330,211143,6825,241690,3247
0,75suits2430,611184,6925,241690,3247
0,75suits2531,411237,4525,241690,3247
1Even212,28218,5118,641800,3143
1Even315,81307,8818,641800,3143
1Even416,26351,5818,641800,3143
1Even516,78391,9218,641800,3143
1Even617,73434,8418,641800,3143
1Even718,57480,4318,641800,3143
1Even819,7855118,641800,3143
1Even920,53600,4118,641800,3143
1Even1021,22639,8918,641800,3143
1Even1122,12691,3118,641800,3143
1Even1222,74738,8318,641800,3143
1Even1323,37777,5118,641800,3143
1Even1423,95828,6618,641800,3143
1Even1524,53866,5918,641800,3143
1Even1625,09912,9318,641800,3143
1Even1725,6949,7118,641800,3143
1Even1826,14986,8518,641800,3143
1Even1926,851046,5818,641800,3143
1Even2027,341087,6318,641800,3143
1Even2127,811128,2918,641800,3143
1Even2228,291173,3518,641800,3143
1Even2328,741209,2218,641800,3143
1Even2429,191253,8818,641800,3143
1Even2529,641410,2118,641800,3143
1suits214,26245,4618,641800,3143
1suits315,81323,6318,641800,3143
1suits417,38381,8818,641800,3143
1suits518,44431,9318,641800,3143
1suits619,53481,3518,641800,3143
1suits720,52533,4418,641800,3143
1suits821,87611,5118,641800,3143
1suits922,75667,3118,641800,3143
1suits1023,57713,1918,641800,3143
1suits1124,57771,5118,641800,3143
1suits1225,32825,4618,641800,3143
1suits1326,03870,1818,641800,3143
1suits1426,72927,5618,641800,3143
1suits1527,39971,5318,641800,3143
1suits1628,031023,9118,641800,3143
1suits1728,661066,9218,641800,3143
1suits1829,221109,5118,641800,3143
1suits1930,071176,7718,641800,3143
1suits2030,51222,4718,641800,3143
1suits2131,15127018,641800,3143
1suits2231,581319,9118,641800,3143
1suits2332,221362,8518,641800,3143
1suits2432,651412,5618,641800,3143
1suits2533,511475,0818,641800,3143
1,5Even212,79243,7512,461990,2937
1,5Even316,78348,8912,461990,2937
1,5Even417,29403,6112,461990,2937
1,5Even517,87455,0712,461990,2937
1,5Even618,94509,7712,461990,2937
1,5Even719,89566,9812,461990,2937
1,5Even821,21650,6612,461990,2937
1,5Even922,06711,6612,461990,2937
1,5Even1022,84762,6212,461990,2937
1,5Even1123,82826,4612,461990,2937
1,5Even1224,53885,412,461990,2937
1,5Even1325,23935,512,461990,2937
1,5Even1425,89997,9912,461990,2937
1,5Even1526,551047,2612,461990,2937
1,5Even1627,181104,9112,461990,2937
1,5Even1727,761152,9112,461990,2937
1,5Even1828,371201,3212,461990,2937
1,5Even1929,141273,4912,461990,2937
1,5Even2029,71325,7812,461990,2937
1,5Even2130,231377,6312,461990,2937
1,5Even2230,771433,8712,461990,2937
1,5Even2331,281480,8912,461990,2937
1,5Even2431,791536,712,461990,2937
1,5Even2532,271705,2112,461990,2937
1,5suits215,03280,9912,461990,2937
1,5suits316,78377,7612,461990,2937
1,5suits418,55452,2812,461990,2937
1,5suits519,74518,2512,461990,2937
1,5suits620,98583,9412,461990,2937
1,5suits722,1652,1412,461990,2937
1,5suits823,57747,9512,461990,2937
1,5suits924,56819,8212,461990,2937
1,5suits1025,49881,6712,461990,2937
1,5suits1126,6956,9512,461990,2937
1,5suits1227,451026,8112,461990,2937
1,5suits1328,251087,412,461990,2937
1,5suits1429,031160,612,461990,2937
1,5suits1529,781220,3612,461990,2937
1,5suits1630,511288,512,461990,2937
1,5suits1731,211347,212,461990,2937
1,5suits1831,851405,4512,461990,2937
1,5suits1932,781489,7912,461990,2937
1,5suits2033,271551,0312,461990,2937
1,5suits21341614,2812,461990,2937
1,5suits2234,491679,7112,461990,2937
1,5suits2335,221738,3512,461990,2937
1,5suits2435,71803,5612,461990,2937
1,5suits2536,641883,1712,461990,2937
2,5Even213,87300,797,631880,340
2,5Even318,59437,57,631880,340
2,5Even419,19513,677,631880,340
2,5Even519,88586,797,631880,340
2,5Even621,14664,577,631880,340
2,5Even722,27744,57,631880,340
2,5Even823,75853,547,631880,340
2,5Even924,76937,157,631880,340
2,5Even1025,681010,57,631880,340
2,5Even1126,811098,357,631880,340
2,5Even1227,641179,517,631880,340
2,5Even1328,481251,847,631880,340
2,5Even1429,251336,47,631880,340
2,5Even1530,031407,757,631880,340
2,5Even1630,781487,397,631880,340
2,5Even1731,471557,237,631880,340
2,5Even1832,191627,557,631880,340
2,5Even1933,061723,637,631880,340
2,5Even2033,721797,737,631880,340
2,5Even2134,351871,317,631880,340
2,5Even2234,991949,297,631880,340
2,5Even2335,592017,967,631880,340
2,5Even2436,192095,427,631880,340
2,5Even2536,722287,227,631880,340
2,5suits216,51358,737,631880,340
2,5suits318,59492,467,631880,340
2,5suits420,68598,997,631880,340
2,5suits522,09696,217,631880,340
2,5suits623,56793,937,631880,340
2,5suits724,88893,87,631880,340
2,5suits826,541024,137,631880,340
2,5suits927,721127,547,631880,340
2,5suits1028,811220,77,631880,340
2,5suits1130,091329,037,631880,340
2,5suits1231,091430,057,631880,340
2,5suits1332,041521,727,631880,340
2,5suits1432,961625,897,631880,340
2,5suits1533,851716,577,631880,340
2,5suits1634,721815,567,631880,340
2,5suits1735,5519057,631880,340
2,5suits1836,31993,97,631880,340
2,5suits1937,372111,37,631880,340
2,5suits2037,952202,937,631880,340
2,5suits2138,812296,947,631880,340
2,5suits2239,392392,727,631880,340
2,5suits2340,252482,087,631880,340
2,5suits2440,822577,67,631880,340
2,5suits2541,92690,197,631880,340
RELATED PRODUCTS

SHIPPING AND DELIVERY TIMES

Shipping and Delivery Times – FAQ

Q: How does product shipping work?

A: We ship throughout Brazil. We work with the Post Office (SEDEX and PAC) and several partner carriers. When you finalize your purchase, our system calculates and presents the best shipping options available for your zip code, based on the weight and dimensions of your order.

Q: What is the delivery time for my order?

A: Our total delivery time is the sum of two stages: Availability Time + Carrier Time.

  • Availability Period:

    • Products in Stock: If the product is in stock, it will be shipped within 2 business days.

    • Products Made to Order: To ensure maximum quality and flexibility, many of our cables are made to order . In these cases, the production and shipping time is 15 business days.

  • Carrier's deadline:

    • This is the time it takes for the shipping to reach you after we dispatch it. This timeframe is shown when calculating shipping costs in your shopping cart.

Therefore, for a product that is in production, the total estimated delivery time will be 15 business days plus the shipping time.

Q: Why the 15 business day production lead time? What if there are delays?

A: Our on-demand production model allows us to offer superior industrial-quality cables, in the exact length you need, and at extremely competitive prices. As a manufacturing unit, our production process involves several variables, such as receiving raw materials and operating complex machinery. We understand that unforeseen events can occur. Should any event arise that could impact the 15-business-day timeframe, our team will proactively contact you to keep you informed of the new schedule. We are committed to complete transparency throughout the entire process.

Q: Can I cancel an order that is already in production?

A: For products manufactured on demand (make-to-order model), we do not accept cancellations once the order enters our production line. This is because, to ensure speed and competitive pricing, the raw materials for your cable are separated and allocated, and the manufacturing process begins immediately after payment confirmation. Please review your order carefully before finalizing it. If you have any questions, please contact our team.

Shipping Costs

Q: How is the shipping cost calculated?

A: The value is automatically calculated in your shopping cart, based on the total weight of the products, the dimensions of the packaging, and the destination zip code entered.

Q: Do you offer free shipping?

A: We don't currently have a fixed free shipping policy. Occasionally, we may run specific promotions. The most accurate way to check the cost for your location is to add the desired products and your zip code to your cart.

Warranty and Returns

Q: What is the return and exchange policy?

A: According to our policy and the Consumer Protection Code, we accept returns due to buyer's remorse or manufacturing defects within 7 (seven) calendar days of receiving the product. To initiate the process, please contact our Customer Service Center via email. ecommerce@innovcable. Com.br Please provide the order number and reason for the return. The product must be returned in its original packaging, undamaged and showing no signs of misuse. We emphasize that this return policy remains valid and unchanged after receipt.

Q: Do the products have a warranty?

A: Yes. All cables in our product line are guaranteed against manufacturing defects. The specific warranty period can be found on each product page. The warranty does not cover damage caused by incorrect installation, misuse, or natural wear and tear from use.

COIL1 (1)
COIL 2
empilhadeira

Loading and Transportation

1. When lifting with a crane, the correct rope must be used, attached to an axle located in the center of the coil.

* Heads up:
– Move it as close to the ground as possible.
Move slowly and, once in the correct position, do not stop abruptly.

2- In the case of a forklift, the drums must not be damaged by the forklift.

* Heads up:
Place the coil in the center of the fork.
The width of the fork must be greater than the spool.

Transportation and unloading

✽ Precautions when handling cables:
• Do not cover the coils.
• Do not roll more than 20 m.
• Do not use sharp objects when moving.
• Do not roll a damaged coil.
• Do not roll on uneven surfaces.
• Do not store the coil near heaters or flammable materials.


Checks when handling cables – Storage

• Do not remove the protective materials and packaging that protect the reels and cables until they are used.
• Store in a protected or enclosed location to protect against damage from machinery.
• Store in a suitable, closed storage location for extended periods. (Coils and packaging should be kept in a dry place.)
• Seal both ends of the remaining cables on the reels using heat-shrink tubing to prevent moisture absorption.
