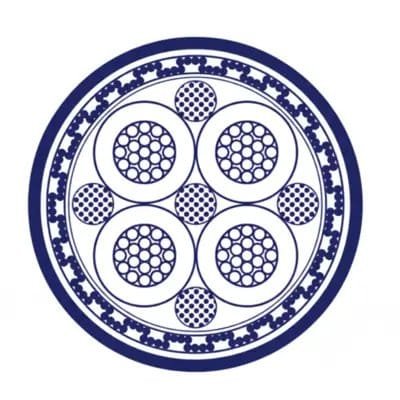

Power cable for frequency inverter; 0,6/1 kV; 4 + 2 + 2 conductors; Max. 50 mm²; INNOVLON / PUR; 80°C
Shielded Mobile Use Cable Control / Command / Power Cable Carrier Robotics Frequency Inverter Innodrive® SV-5310 SK-C-PUR SERVO 0,6/1kV
💡 Add to cart — Immediate purchase. The discount for your volume bracket is automatically applied, and you complete the order online.
📋 Add to quote request Our team will analyze and get back to you with a proposal. Ideal for large volumes, special deadlines, or when you need to add cables that are not available for sale online.
- Superior Resistance: Robust construction in PUR, resistant to oils, greases, UV rays and abrasion.
- Extreme Movement: Designed for up to 10 million cycles at high speeds and accelerations.
- Reliable and Secure Connection: Low capacitance EMC shielding for clean, interference-free, halogen-free power transmission.
- Versatile Applications: Ideal for frequency converters, robots, and machine tools.
- Excellent Value for Money: Invest in a long-lasting cable with an optimized design that reduces downtime and maintenance costs.
|
Benefits
| Applications
|
| General information | |
|---|---|
| Brand | INNOVCABLE |
| Product type | Low capacitance shielded power cable for EMC applications, for servomotors and frequency converters. |
| Electrical Parameters | |
| Nominal Voltage | Uo/U 600/1.000 V |
| Test Voltage | 4 kV |
| Insulation Resistance | At +20°C ≥ 20 MOhm x km |
| Product Design | |
| Conductor Material | Bare copper wires. |
| Driver Class | In accordance with DIN VDE 0295 class 5/6 / IEC 60228 class 5/6. |
| Conductor Resistance | At +20°C according to IEC 60228 cl. 5/6. |
| Base Material for Vein Isolation | INNOVLON® |
| Type of Twist | Conductors and twisted elements combined with highly flexible filling. |
| Shielded | Tinned copper braid (coverage >85%) + Shielding on control pairs. |
| Cable Format | Round |
| Base Material for the External Covering | PUR, halogen-free, flame retardant. |
| Cover Color | RAL Orange 2003. |
| Road Identification | Power supply conductors: black with white markings U/L1/C/L+; V/L2; W/L3/D/L- and G/V; Control conductors: 1 pair black and white; 2 pairs black with markings 5, 6, 7, 8; triple: black with markings 1, 2, 3. |
| Product characteristics | |
| Application Area | Connection of frequency converters to motors, use in cable carriers, automatic machines, machine tools, robotics and automation in general. Suitable for dry and humid environments. |
| For continuous bending | Yes. |
| Curvature Cycles | Up to 10 million. |
| For torsional load | Yes, 30°/m. |
| Minimum Radius of Curvature (Fixed) | 4 x outer diameter. |
| Minimum Radius of Curvature (Mobile) | 7,5 x outside diameter (for sections ≤ 16 mm²) / 10 x outside diameter (for sections ≥ 25 mm²). |
| Speed | Maximum speed of 300 m/min. |
| Aceleração | Maximum speed of 50 m/s². |
| Temperature, fixed installation | -50 °C to +90 °C. |
| Temperature, constant movement | -50 °C to +90 °C. |
| Maximum temperature in the driver | +90 °C. |
| Flame retardant | Self-extinguishing and flame retardant according to IEC 60332-1-2. |
| UV resistant | Yes. |
| Chemical resistant | High resistance to greases, lubricants, and coolants. |
| Halogen-free | Yes, in accordance with DIN VDE 0472-815, IEC 60754-1. |
| Oil resistant | Yes, in accordance with DIN EN 60811-404, VDE 0473-811-404 and EN 50363-10-2. |
| Resistant to mud | Yes, according to NEK 606-2009. |
| Additional Features | Low adhesion, low abrasion, silicone-free, CFC-free. |
| Standards and Approvals | |
| DIN VDE 0295 cl. 6 | IEC 60228 cl. 6 |
| IEC 60332 1 2 | IEC 60754-1 |
| DIN VDE 0472-815 | EN-60811 404 |
| VDE 0473-811-404 | EN 50363-10-2 |
| NEK 606-2009 | DESINA |
| Low Voltage Directive 2014/35/EU | RoHS |
| Dimension [nx mm²] | External diameter [mm] | Weight [kg/1000m] | Variant |
| 4G 1,5 | 9,2 | 163 | V1: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, GNGE |
| 4G 2,5 | 10,6 | 233 | V1: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, GNGE |
| 4G 4 | 11,9 | 314 | V2: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, GNGE |
| 4G 6 | 14,7 | 437 | V2: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, GNGE |
| 4G 10 | 17,6 | 654 | V2: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, GNGE |
| 4G 16 | 21,6 | 1016 | V2: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, GNGE |
| 4G 25 | 25,3 | 1440 | V2: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, GNGE |
| 4G 35 | 28,7 | 1991 | V2: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, GNGE |
| 4G 50 | 33,4 | 2604 | V2: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, GNGE |
| 4 G 1,5 + (2 X 1,5) | 11,7 | 251 | V3: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, SW-WS, GNGE |
| 4 G 2,5 + (2 X 1,5) | 13,4 | 316 | V3: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, SW-WS, GNGE |
| 4 G 4 + (2 X 1,5) | 14,9 | 408 | V4: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, SW-WG, GNGE |
| 4 G 6 + (2 X 1,5) | 16,8 | 535 | V3: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, SW-WS, GNGE |
| 4 G 10 + (2 X 1,5) | 19,9 | 755 | V4: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, SW-WS, GNGE |
| 4 G 16 + (2 X 1,5) | 22,7 | 1050 | V4: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, SW-WS, GNGE |
| 4 G 25 + (2 X 1,5) | 26,3 | 1570 | V4: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, SW-WS, GNGE |
| 4 G 35 + (2 X 1,5) | 31,2 | 2073 | V4: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, SW-WS, GNGE |
| 4 G 50 + (2 X 1,5) | 34,7 | 2800 | V4: INNODRIVE SV-5310: after / acc. to Standard Siemens MC 800PLUS: U, V, W, SW-WS, GNGE |
| 4 G 1,5 + 2 X (2 x 0,75) | 13 | 228 | V5.2: INNODRIVE SV-5310: after / acc. Standard Bosch Rexroth: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 2,5 + 2 X (2 x 1) | 14,8 | 343 | V5.2: INNODRIVE SV-5310: after / acc. Standard Bosch Rexroth: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 4 + (2 x 1) + (2 x 1,5) | 16,3 | 449 | V5.2: INNODRIVE SV-5310: after / acc. Standard Bosch Rexroth: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 6 + (2 x 1) + (2 x 1,5) | 18,6 | 572 | V5.2: INNODRIVE SV-5310: after / acc. Standard Bosch Rexroth: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 10 + (2 x 1) + (2 x 1,5) | 22 | 881 | V5.2: INNODRIVE SV-5310: after / acc. Standard Bosch Rexroth: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 16 + (2 X 1) + (2 X 1,5) | 25,5 | 1155 | V8.2: INNODRIVE SV-5310: after / acc. Diverse: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 25 + 2 X (2 x 1,5) | 28,9 | 1513 | V5.2: INNODRIVE SV-5310: after / acc. Standard Bosch Rexroth: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 35 + 2 X (2 x 1,5) | 31,4 | 1969 | V5.2: INNODRIVE SV-5310: after / acc. Standard Bosch Rexroth: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 50 + 2 X (2 x 1,5) | 37 | 2875 | V5.2: INNODRIVE SV-5310: after / acc. Standard Bosch Rexroth: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 1 + 2 x (2 x 0,75) | 12 | 203 | V5.2: INNODRIVE SV-5310: after / acc. Standard Bosch Rexroth: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 1,5 + (3 X 1) | 11,6 | 213 | V6: INNODRIVE SV-5310: after / acc. SEW Standard: U, V, W, 1, 2, 3, GNGE |
| 4 G 2,5 + (3 X 1) | 13,4 | 284 | V6: INNODRIVE SV-5310: after / acc. SEW Standard: U, V, W, 1, 2, 3, GNGE |
| 4 G 4 + (3 x 1) | 14,8 | 366 | V6: INNODRIVE SV-5310: after / acc. SEW Standard: U, V, W, 1, 2, 3, GNGE |
| 4 G 6 + (3 x 1,5) | 17,4 | 492 | V6: INNODRIVE SV-5310: after / acc. SEW Standard: U, V, W, 1, 2, 3, GNGE |
| 4 G 10 + (3 x 1,5) | 20,3 | 717 | V6: INNODRIVE SV-5310: after / acc. SEW Standard: U, V, W, 1, 2, 3, GNGE |
| 4 G 16 + (3 x 1,5) | 23,7 | 1052 | V6: INNODRIVE SV-5310: after / acc. SEW Standard: U, V, W, 1, 2, 3, GNGE |
| 4 G 0,75 + (2 X 0,5) | 9,4 | 165 | V5.2: INNODRIVE SV-5310: after / acc. Standard Bosch Rexroth: U, V, W, GNGE, 7, 8 |
| 4 G 16 + 2 X (2 x 1,5) | 25,9 | 1169 | V5.2: INNODRIVE SV-5310: after / acc. Standard Bosch Rexroth: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 1 + (2 X 0,5) | 9,8 | 134 | V7: INNODRIVE SV-5310: after / acc. Standard Lenze: WWVW, VV, U, SW-WS, GNGE |
| 4 G 1,5 + (2 X 0,5) | 11,6 | 180 | V7: INNODRIVE SV-5310: after / acc. Standard Lenze: WWVW, VV, U, SW-WS, GNGE |
| 4 G 2,5 + (2 X 0,5) | 11,8 | 229 | V7: INNODRIVE SV-5310: after / acc. Standard Lenze: WWVW, VV, U, SW-WS, GNGE |
| 4 G 4 + (2 x 1) | 14,3 | 361 | V7: INNODRIVE SV-5310: after / acc. Standard Lenze: WWVW, VV, U, SW-WS, GNGE |
| 4 G 6 + (2 x 1) | 16,6 | 451 | V7: INNODRIVE SV-5310: after / acc. Standard Lenze: WWVW, VV, U, SW-WS, GNGE |
| 4 G 10 + (2 X 1) | 19,7 | 670 | V7: INNODRIVE SV-5310: after / acc. Standard Lenze: WWVW, VV, U, SW-WS, GNGE |
| 4 G 16 + (2 X 1) | 22,5 | 978 | V7: INNODRIVE SV-5310: after / acc. Standard Lenze: WWVW, VV, U, SW-WS, GNGE |
| 4 G 0,75 + 2 X (2 x 0,34) | 9,7 | 132 | V8.2: INNODRIVE SV-5310: after / acc. Diverse: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 1,5 + (2 X 1) | 11,5 | 200 | V8.1: INNODRIVE SV-5310: after / acc. Diverse: U, V, W, SW-WS, GNGE |
| 4 G 1,5 + 2 X (2 x 0,5) | 12 | 211 | V8.2: INNODRIVE SV-5310: after / acc. Diverse: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 1,5 + 2 X (2 x 1) | 13 | 249 | V8.2: INNODRIVE SV-5310: after / acc. Diverse: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 2,5 + 2 X (2 x 0,75) | 14,6 | 340 | V8.2: INNODRIVE SV-5310: after / acc. Diverse: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 2,5 + 2 X (2 x 1,5) | 15,6 | 377 | V8.2: INNODRIVE SV-5310: after / acc. Diverse: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 4 + 2 X (2 x 1,5) | 16,1 | 423 | V8.2: INNODRIVE SV-5310: after / acc. Diverse: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 4 + 2 X (2 x 1) | 16,7 | 450 | V8.2: INNODRIVE SV-5310: after / acc. Diverse: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 6 + 2 X (2 x 1) | 18,4 | 535 | V8.2: INNODRIVE SV-5310: after / acc. Diverse: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 6 + 2 X (2 x 1,5) | 19,4 | 57,8 | V8.2: INNODRIVE SV-5310: after / acc. Diverse: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 10 + 2 X (2 x 1) | 21,8 | 746 | V8.2: INNODRIVE SV-5310: after / acc. Diverse: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 10 + 2 X (2 x 1,5) | 22,5 | 810 | V8.2: INNODRIVE SV-5310: after / acc. Diverse: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 16 + 2 X (2 x 1) | 25,3 | 1107 | V8.2: INNODRIVE SV-5310: after / acc. Diverse: U, V, 5, 6, W, GNGE, 7, 8 |
| 4 G 16 + (2 X 1) + (2 X 1,5) | 25,5 | 1155 | V8.2: INNODRIVE SV-5310: after / acc. Diverse: U, V, 5, 6, W, GNGE, 7, 8 |
Related products
Shipping and Delivery Times – FAQ
Q: How does product shipping work?
A: We ship throughout Brazil. We work with the Post Office (SEDEX and PAC) and several partner carriers. When you finalize your purchase, our system calculates and presents the best shipping options available for your zip code, based on the weight and dimensions of your order.
Q: What is the delivery time for my order?
A: Our total delivery time is the sum of two stages: Availability Time + Carrier Time.
Availability Period:
Products in Stock: If the product is in stock, it will be shipped within 2 business days.
Products Made to Order: To ensure maximum quality and flexibility, many of our cables are made to order . In these cases, the production and shipping time is 15 business days.
Carrier's deadline:
This is the time it takes for the shipping to reach you after we dispatch it. This timeframe is shown when calculating shipping costs in your shopping cart.
Therefore, for a product that is in production, the total estimated delivery time will be 15 business days plus the shipping time.
Q: Why the 15 business day production lead time? What if there are delays?
A: Our on-demand production model allows us to offer superior industrial-quality cables, in the exact length you need, and at extremely competitive prices. As a manufacturing unit, our production process involves several variables, such as receiving raw materials and operating complex machinery. We understand that unforeseen events can occur. Should any event arise that could impact the 15-business-day timeframe, our team will proactively contact you to keep you informed of the new schedule. We are committed to complete transparency throughout the entire process.
Q: Can I cancel an order that is already in production?
A: For products manufactured on demand (make-to-order model), we do not accept cancellations once the order enters our production line. This is because, to ensure speed and competitive pricing, the raw materials for your cable are separated and allocated, and the manufacturing process begins immediately after payment confirmation. Please review your order carefully before finalizing it. If you have any questions, please contact our team.
Shipping Costs
Q: How is the shipping cost calculated?
A: The value is automatically calculated in your shopping cart, based on the total weight of the products, the dimensions of the packaging, and the destination zip code entered.
Q: Do you offer free shipping?
A: We don't currently have a fixed free shipping policy. Occasionally, we may run specific promotions. The most accurate way to check the cost for your location is to add the desired products and your zip code to your cart.
Warranty and Returns
Q: What is the return and exchange policy?
A: According to our policy and the Consumer Protection Code, we accept returns due to buyer's remorse or manufacturing defects within 7 (seven) calendar days of receiving the product. To initiate the process, please contact our Customer Service Center via email. ecommerce@innovcable. Com.br Please provide the order number and reason for the return. The product must be returned in its original packaging, undamaged and showing no signs of misuse. We emphasize that this return policy remains valid and unchanged after receipt.
Q: Do the products have a warranty?
A: Yes. All cables in our product line are guaranteed against manufacturing defects. The specific warranty period can be found on each product page. The warranty does not cover damage caused by incorrect installation, misuse, or natural wear and tear from use.
Loading and Transportation
1. When lifting with a crane, the correct rope must be used, attached to an axle located in the center of the coil.
* Heads up:
– Move it as close to the ground as possible.
Move slowly and, once in the correct position, do not stop abruptly.
2- In the case of a forklift, the drums must not be damaged by the forklift.
* Heads up:
Place the coil in the center of the fork.
The width of the fork must be greater than the spool.
Transportation and unloading
• Do not cover the coils.
• Do not roll more than 20 m.
• Do not use sharp objects when moving.
• Do not roll a damaged coil.
• Do not roll on uneven surfaces.
• Do not store the coil near heaters or flammable materials.
Checks when handling cables – Storage
• Store in a protected or enclosed location to protect against damage from machinery.
• Store in a suitable, closed storage location for extended periods. (Coils and packaging should be kept in a dry place.)
• Seal both ends of the remaining cables on the reels using heat-shrink tubing to prevent moisture absorption.
