Power and Control Cable; Shielded; Mobile Use; 600/1000V; 4 + 3 conductors; max. 50,00mm², Numbered Cores; INNOVLON™ / PVC, Flame and Oil Resistant; -30°C/+80°C
Shielded Mobile Use Cable for Control/Command/Power, Cable Carrier, Robotics, Frequency Inverter, Servoflex® SK C PVC 1KV
💡 Add to cart — Immediate purchase. The discount for your volume bracket is automatically applied, and you complete the order online.
📋 Add to quote request Our team will analyze and get back to you with a proposal. Ideal for large volumes, special deadlines, or when you need to add cables that are not available for sale online.
- Secure and Protected Connection: Tin-plated copper mesh with high coverage protects against electromagnetic interference (EMC).
- Flexibility for Movement: Designed for millions of cycles on high-acceleration cable carrier systems.
- Robust and Reliable: Highly resistant to oils, greases and coolants, ideal for harsh industrial environments.
- Compatibility and International Certification: Manufactured in accordance with the strictest global standards, guaranteeing its quality and safety.
- Wide Temperature Operation: Consistent performance across a wide temperature range, for installation in dry or humid environments.
|
Benefits
| Applications
|
| General information | |
|---|---|
| Brand | INNOVCABLE |
| Product type | SERVOFLEX® |
| Description | Shielded, low-capacitance power cable with control leads for servo motors, for applications in cable carrier systems. |
| Electrical Parameters | |
| Rated voltage | Uo/U: 600/1.000 V (IEC); 1.000V (UL/CSA) |
| Test Voltage | 4 kV |
| Conductor Resistance | +20°C, according to IEC 60228 class 5. |
| Insulation Resistance | +20°C, ≥ 20 MΩ x km. |
| Product Design | |
| Conductor Material | Bare copper wires. |
| Driver Class | In accordance with DIN VDE 0295 class 5 / IEC 60228 class 5. |
| Vein Isolation Material | INNOVLON™. |
| Road Identification | Power channels: Black with white printing (U/L1/C/L+; V/L2; W/L3/D/L-) and Green/Yellow. Control channels: Pairs (Black and White) or trios (Black with white numerals 1, 2, 3). |

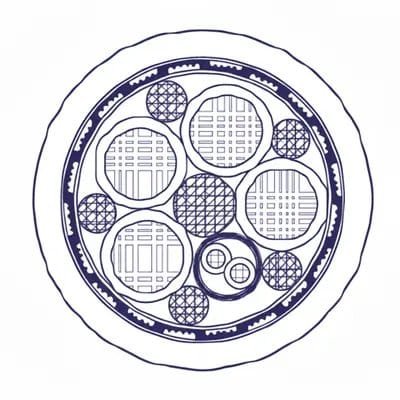

| Type of Twist | Twisted tracks and elements (pairs/trios) joined together with highly flexible fillers. |
| shielding | Tinned copper mesh with approximately 80% optical coverage. Control elements (pair/trio) also have individual shielding. |
| Exterior Roofing Material | PVC. |
| Cover Color | Orange, RAL 2003. |
| Product characteristics | |
| Application Area | EMC-compliant connection between frequency converters and servo motors. Suitable for dry and humid environments. |
| For continuous bending | Yes, designed for cable carrier systems. |
| Minimum Radius of Curvature (Fixed) | 5 x cable diameter |
| Minimum Radius of Curvature (Mobile) | 15 x cable diameter |
| Distance Covered (on treadmill) | Maximum of 5 m. |
| Travel speed (on treadmill) | Maximum 30 m/min (self-supporting). |
| Acceleration (on a treadmill) | Maximum speed of 2 m/s². |
| Temperature, fixed installation | -30 °C to +80 °C. |
| Temperature, constant movement | -5 °C to +80 °C. |
| Flame Retardant | Self-extinguishing and flame retardant according to IEC 60332-1; UL: VW1; CSA: FTI. |
| Chemical Resistant | Highly resistant to grease, coolant, and lubricants. |
| Silicone-free | Yes. |
| Standards and Approvals | |
| Approvals | UL/CSA-cURus 1.000 V, 80°C. |
| Conformity | DESINA, Siemens MC 500, Bosch Rexroth, SEW, Lenze. |
| Applicable Standards | DIN VDE 0295 cl. 5, IEC 60228 cl. 5, IEC 60332-1. |
| Standard | Dimensional | Diameter-Ø [mm] | Weight [kg/km] |
| Standard Lenze: WWW, VV, U, SW-WS, GNGE | 4 G 1 + (2 X 0,5) | 9,4 | 140 |
| 4 G 1,5 + (2 X 0,5) | 10,4 | 153 | |
| 4 G 2,5 + (2 X 0,5) | 11,4 | 219 | |
| 4 G 4 + (2 X 1) | 13,7 | 374 | |
| 4 G 6 + (2 X 1) | 15,9 | 462 | |
| 4 G 10 + (2 X 1) | 19,1 | 688 | |
| 4 G 16 + (2 X 1) | 22,3 | 1.001 | |
| Diverse: WWW, VV, U, SW-WS, GNGE | 4 G 1,5 + (2 X 1) | 11,3 | 158 |
| 4 G 2,5 + (2 X 1) | 12,3 | 209 | |
| Diverse: U, V, 5, 6, W, GNGE, 7, 8 | 4 G 0,75 + 2 X (2 X 0,34) | 10,3 | 145 |
| 4 G 2,5 + 2 X (2 X 0,75) | 13,8 | 311 | |
| 4 G 4 + 2 X (2 X 1) | 16,1 | 416 | |
| 4 G 6 + 2 X (2 X 1) | 19 | 577 | |
| 4 G 10 + 2 X (2 X 1) | 21,6 | 812 | |
| 4 G 16 + 2 X (2 X 1) | 25 | 1.088 | |
| 4 G 25 + 2 X (2 X 1) | 27,6 | 1.460 | |
| 4 G 35 + 2 X (2 X 1) | 30,4 | 1.882 | |
| Standard Siemens MC 500: V, U, W, GNGE | 4G 1.5 | 8,6 | 144 |
| 4G 2.5 | 9,8 | 213 | |
| 4G 4 | 11,9 | 287 | |
| 4G 6 | 14,7 | 434 | |
| 4G 10 | 17,5 | 631 | |
| 4G 16 | 21,6 | 927 | |
| 4G 25 | 25,4 | 1.329 | |
| 4G 35 | 29,5 | 1.831 | |
| 4G 50 | 33,6 | 2.488 | |
| Standard Siemens MC 500: V, U, W, SW-WS, GNGE | 4 G 1.5 + (2 X 1.5) | 11 | 210 |
| 4 G 2.5 + (2 X 1.5) | 12,4 | 298 | |
| 4 G 4 + (2 X 1.5) | 13,9 | 398 | |
| 4 G 6 + (2 X 1.5) | 16,1 | 517 | |
| 4 G 10 + (2 X 1.5) | 19,4 | 720 | |
| 4 G 16 + (2 X 1.5) | 22,5 | 1.042 | |
| 4 G 25 + (2 X 1.5) | 26,5 | 1.449 | |
| 4 G 35 + (2 X 1.5) | 31 | 1.949 | |
| 4 G 50 + (2 X 1.5) | 34 | 2.622 | |
| Standard Bosch Rexroth: U, V, 5, 6, W, GNGE, 7, 8 | 4 G 1 + 2 X (2 X 0,75) | 12 | 216 |
| 4 G 1,5 + 2 X (2 X 0,75) | 13 | 245 | |
| 4 G 2,5 + 2 X (2 X 1) | 14 | 334 | |
| 4 G 4 + (2 X 1) + (2 X 1.5) | 16,3 | 438 | |
| 4 G 6 + (2 X 1) + (2 X 1.5) | 19,2 | 604 | |
| 4 G 10 + (2 X 1) + (2 X 1.5) | 22 | 796 | |
| 4 G 16 + 2 X (2 X 1.5) | 25,5 | 1.134 | |
| SEW Standard: U, V, W, 1, 2, 3, GNGE | 4 G 1.5 + (3 X 1) | 11,4 | 225 |
| 4 G 2.5 + (3 X 1) | 13,4 | 282 | |
| 4 G 4 + (3 X 1) | 14,8 | 378 | |
| 4 G 6 + (3 X 1.5) | 17,4 | 528 | |
| 4 G 10 + (3 X 1.5) | 20,3 | 758 | |
| 4 G 16 + (3 X 1.5) | 23,7 | 1.059 |
