Power and Control Cable, Mobile Use; 750 V; 2 to 25 conductors; max. 2,50 mm², Numbered Cores, LSZH; CECO™ /CEAC™, Flame and Oil Resistant; +130°C

Mobile Cable, Rubber Shielded with Copper Braid (BTC) SO-M 750 V 130ºC

Rodent protection?

Provides extra protection against rodents and termites. The price will be updated in your cart.

Green Way Terra Protection?

Configure one of the cable wires to be green for grounding. The value will be updated in the cart.

💡 Add to cart — Immediate purchase. The discount for your volume bracket is automatically applied, and you complete the order online.
📋 Add to quote request Our team will analyze and get back to you with a proposal. Ideal for large volumes, special deadlines, or when you need to add cables that are not available for sale online.

SO-M BTC Cable: The Ultimate Solution for Mobile EquipmentDeveloped for the most demanding operating conditions in equipment requiring continuous movement and superior performance. This cable combines unparalleled flexibility, safety, and long service life, ensuring maximum energy efficiency and the continuity of your critical operations, even under the most extreme adversities.
  • Safety first: Flame-retardant compound, with very high protection against cuts and crushing, ensuring complete peace of mind.
  • Guaranteed Extreme Performance: The insulation operates at high temperatures up to 130°C, maintaining its integrity and superior performance.
  • Flexibility and High Resistance: It withstands constant twisting, dragging and abrasion, making it ideal for reels, conveyors and cranes.
  • Weather and Chemical Resistant: Resistant to UV rays, moisture, oils, greases, and various chemical agents.
  • Unmatched Durability: It has extremely high fatigue resistance, guaranteeing a long-term investment for your operations.

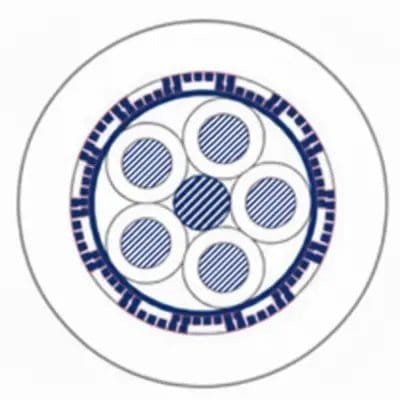

PRODUCT DESIGN


  • CONDUCTOR: Composed of bare or tinned electrolytic copper wires, soft temper, class 5 stranding.
  • INSULATION: CECO™ Elastomeric Compound for temperatures up to 130ºC.
  • IDENTIFICATION: Black or white veins, numbered.
  • REINFORCEMENT: Textile separation.
  • SHIELDING: Concentric, mesh of bare copper wires.
  • OUTER LAYER: CEAC™ Elastomeric Compound in black, flame resistant.
  • TECHNICAL CHARACTERISTICS: – Excellent Flexibility;
  • – Good resistance to abrasion, torsion and dragging;
  • – Good resistance to ultraviolet (UV) sunlight, diverse weather conditions, and situations of extreme exposure to harsh weather.
  • – Good resistance to cutting and crushing;
  • – Good resistance to greases, oils, hydrocarbons and chemical agents.
  • – Good heat resistance – performs very well in high temperature conditions.
  • – Good resistance to detergents, aqueous fluids, acids, bases, and saline solutions.
  • Flame resistant.
DETAILS

Benefits

  • High thermal performance: Special insulation for safe operation up to 130°C.
  • High flexibility: Class 5 conductor that facilitates installation in complex locations.
  • Superior chemical resistance: Coating in CEAC that is immune to oils, greases and moisture.
  • Maximum durability: Robust compound with excellent mechanical and abrasion resistance.
  • Corrosion protection: Tinned copper conductor that ensures a longer lifespan.
  • Enhanced Security: Material with flame-retardant properties.
  • Use in harsh environments: Resistant to weathering and ozone exposure.
  • Connection reliability: Ensures electrical integrity in demanding applications.
  • Installation versatility: Ideal for fixed projects or those requiring mobility.
  • Cost reduction: Long service life that minimizes downtime and maintenance costs.

Applications

  • Direct current motors: Feeding and control in industrial equipment.
  • Brake coils: Secure connections for electromagnetic braking systems.
  • Magnetic couplings: Coil connections in torque transmission systems.
  • Electrical panels and switchboards: Power, control and energy distribution circuits.
  • Industrial facilities: Feeding machines and equipment in manufacturing plants.
  • Power substations: Auxiliary and control circuits in yards and command houses.
  • Yard equipment: Energy for handling machinery in ports and railways.
  • Overhead cranes and gantry cranes: Robust connections for mobile lifting equipment.
  • Heavy industry: Ideal solution for steel mills, mining and cement plants.
  • Agricultural machinery: Power supply for motors and components in field machines.
TECHNICAL DATA
General information
BrandInnovCable
Product typeMobile cable for powering and controlling machines.
Electrical Parameters
Rated voltage750 V
Test VoltageNot specified
Product Design
Conductor MaterialBare or tinned electrolytic copper wires, soft temper.
Conductor ResistanceAccording to NBR NM 280 / IEC 60228.
Current CapacityAccording to NBR NM 280 / IEC 60228.
Driver DesignClass 5 string set.
Includes protective conductor (ground).Available with (G) or without (x) green protective conductor.
Type of TwistNot specified
ShieldedYes, tin-plated copper mesh shielding (BTC version).
Anti-Twist SystemNot specified
Cable FormatRound
Base Material for Vein IsolationCECO™ Elastomeric Compound for temperatures up to 130ºC.
Intermediate Cover Base MaterialTextile tape.
Base Material for the External CoveringCEAC™ Elastomeric Compound.
Abbreviation for Roofing MaterialCEAC™
Cover ColorBlack.
Road IdentificationBlack or white veins, numbered.
Road color codeNot specified, identification by printed numbers.
Product characteristics
Application AreaPower supply and control circuit for mobile mining machines, gantries, reclaimers, ore stackers, overhead crane pushbuttons, and equipment requiring high mechanical strength and flexibility.
For continuous bendingYes.
For torsional loadGood resistance to torsion.
Minimum Radius of CurvatureNot specified
SpeedNot specified
Traction loadNot specified
Supporting ElementReinforcement with textile separation.
Temperature, fixed installationNot specified
Temperature, constant movementNot specified
Maximum temperature in the driver130 °C (Continuous operation).
Flame retardantYes.
UV resistantYes.
Chemical resistantGood resistance to greases, oils, hydrocarbons, and chemical agents. Good resistance to detergents, aqueous fluids, acids, bases, and saline solutions.
Halogen-freeNot specified.
Oil resistantYes.
Mechanical ResistanceGood resistance to abrasion, torsion, dragging, cutting and crushing.
Weather resistanceYes, good resistance to various weather conditions.
Applicable Standards
NBR 9372Flexible SO-M control cables with ethylene-propylene rubber (EPR) insulation for voltages up to 750V.
NBR NM 280Insulated cable conductors (IEC 60228, MOD).
DIN VDE 0295 class 5Conductors for cables and flexible cords.
IEC 60228 class 5Insulated cable conductors.
NBR 6251Extruded insulated power cables for voltages from 1 kV to 35 kV - Construction requirements.
DIMENSIONAL TABLE
Nominal Section (mm²)Number of DriversExternal Diameter (mm)
Nominal Weight (kg/km)
0,528,53113,72
0,538,8129,09
0,549,61165,49
0,559,76181,41
0,5610,29196,39
0,5710,29205,4
0,5810,84222,58
0,5912,33262,76
0,51012,74283,19
0,51112,74290,86
0,51212,95306,54
0,51313,41326,83
0,51413,41334,18
0,51513,92359,04
0,51613,92366,11
0,51714,45386,56
0,51814,45393,18
0,51914,45399,93
0,52015,2429,75
0,52115,73445,6
0,52215,73456,42
0,52315,73471,64
0,52415,73477,91
0,52515,73492,97
0,7528,95126,04
0,7539,25145,17
0,75410,16187,87
0,75510,33207,08
0,75610,92226,77
0,75710,92238,31
0,75811,53259,46
0,75913,16305,17
0,751013,61329,43
0,751113,61340,48
0,751213,82360,12
0,751314,33384,23
0,751414,33394,91
0,751514,91423,6
0,751614,91433,97
0,751715,5458,25
0,751815,5468,11
0,751915,5478,12
0,752016,32512,53
0,752116,91532,18
0,752216,91546,22
0,752316,91564,65
0,752416,91574,11
0,752516,91592,37
129,31137,25
139,64159,95
1410,63208,37
1510,81230,76
1611,46252,97
1711,46268,88
1812,12293,78
1913,86344,57
11014,35372,47
11114,35386,75
11214,58410,14
11315,12437,86
11415,12451,75
11515,74484,08
11615,74497,61
11716,39525,51
11816,39538,51
11916,39551,66
12017,26590,34
12117,91613,62
12217,91630,75
12317,91652,29
12417,91664,84
12517,91686,19
1,529,87156,27
1,5310,24185,28
1,5411,36243,41
1,5511,57271,48
1,5612,3299,94
1,5712,3321,85
1,5813,05353,35
1,5914,95412,82
1,51015,51447,13
1,51115,51467,19
1,51215,72497,18
1,51316,35531,29
1,51416,35550,91
1,51517,06589,65
1,51617,06608,88
1,51717,79643,21
1,51817,79661,81
1,51917,79680,59
1,52018,75726,7
1,52119,48756,35
1,52219,48779,07
1,52319,48806,19
1,52419,48824,3
1,52519,48851,2
2,5211,6209,58
2,5312,11255,43
2,5413,62340,71
2,5513,9383,72
2,5614,89428,83
2,5714,89466,63
2,5815,91515,85
2,5918,34599,43
2,51019,1650,9
2,51119,1686,18
2,51219,31733,88
2,51320,17785,07
2,51420,17819,76
2,51521,13875,67
2,51621,13909,82
2,51722,11961,32
2,51822,11994,62
2,51922,111028,19
2,52023,351094,55
2,52124,341141,27
2,52224,341178,6
2,52324,341220,32
2,52424,341252,96
2,52524,341294,39
RELATED PRODUCTS

SHIPPING AND DELIVERY TIMES

Shipping and Delivery Times – FAQ

Q: How does product shipping work?

A: We ship throughout Brazil. We work with the Post Office (SEDEX and PAC) and several partner carriers. When you finalize your purchase, our system calculates and presents the best shipping options available for your zip code, based on the weight and dimensions of your order.

Q: What is the delivery time for my order?

A: Our total delivery time is the sum of two stages: Availability Time + Carrier Time.

  • Availability Period:

    • Products in Stock: If the product is in stock, it will be shipped within 2 business days.

    • Products Made to Order: To ensure maximum quality and flexibility, many of our cables are made to order . In these cases, the production and shipping time is 15 business days.

  • Carrier's deadline:

    • This is the time it takes for the shipping to reach you after we dispatch it. This timeframe is shown when calculating shipping costs in your shopping cart.

Therefore, for a product that is in production, the total estimated delivery time will be 15 business days plus the shipping time.

Q: Why the 15 business day production lead time? What if there are delays?

A: Our on-demand production model allows us to offer superior industrial-quality cables, in the exact length you need, and at extremely competitive prices. As a manufacturing unit, our production process involves several variables, such as receiving raw materials and operating complex machinery. We understand that unforeseen events can occur. Should any event arise that could impact the 15-business-day timeframe, our team will proactively contact you to keep you informed of the new schedule. We are committed to complete transparency throughout the entire process.

Q: Can I cancel an order that is already in production?

A: For products manufactured on demand (make-to-order model), we do not accept cancellations once the order enters our production line. This is because, to ensure speed and competitive pricing, the raw materials for your cable are separated and allocated, and the manufacturing process begins immediately after payment confirmation. Please review your order carefully before finalizing it. If you have any questions, please contact our team.

Shipping Costs

Q: How is the shipping cost calculated?

A: The value is automatically calculated in your shopping cart, based on the total weight of the products, the dimensions of the packaging, and the destination zip code entered.

Q: Do you offer free shipping?

A: We don't currently have a fixed free shipping policy. Occasionally, we may run specific promotions. The most accurate way to check the cost for your location is to add the desired products and your zip code to your cart.

Warranty and Returns

Q: What is the return and exchange policy?

A: According to our policy and the Consumer Protection Code, we accept returns due to buyer's remorse or manufacturing defects within 7 (seven) calendar days of receiving the product. To initiate the process, please contact our Customer Service Center via email. ecommerce@innovcable. Com.br Please provide the order number and reason for the return. The product must be returned in its original packaging, undamaged and showing no signs of misuse. We emphasize that this return policy remains valid and unchanged after receipt.

Q: Do the products have a warranty?

A: Yes. All cables in our product line are guaranteed against manufacturing defects. The specific warranty period can be found on each product page. The warranty does not cover damage caused by incorrect installation, misuse, or natural wear and tear from use.

COIL1 (1)
COIL 2
empilhadeira

Loading and Transportation

1. When lifting with a crane, the correct rope must be used, attached to an axle located in the center of the coil.

* Heads up:
– Move it as close to the ground as possible.
Move slowly and, once in the correct position, do not stop abruptly.

2- In the case of a forklift, the drums must not be damaged by the forklift.

* Heads up:
Place the coil in the center of the fork.
The width of the fork must be greater than the spool.

Transportation and unloading

✽ Precautions when handling cables:
• Do not cover the coils.
• Do not roll more than 20 m.
• Do not use sharp objects when moving.
• Do not roll a damaged coil.
• Do not roll on uneven surfaces.
• Do not store the coil near heaters or flammable materials.


Checks when handling cables – Storage

• Do not remove the protective materials and packaging that protect the reels and cables until they are used.
• Store in a protected or enclosed location to protect against damage from machinery.
• Store in a suitable, closed storage location for extended periods. (Coils and packaging should be kept in a dry place.)
• Seal both ends of the remaining cables on the reels using heat-shrink tubing to prevent moisture absorption.
