HydroCore® Marine Cable NEK 606 Water Blocked S12 RU(c); 250V; Instrumentation and Control; Collective Shielding; Max. 1,50mm²; 2 to 37 pairs / trios / quads; HFEPR / SHF2 / PUR; Flame retardant; +90°C

HydroCore® Marine Instrumentation Cable – Flame Retardant PUR Water Blocked S12 RU(c) 250 V

Rodent protection?

Provides extra protection against rodents and termites. The price will be updated in your cart.

💡 Add to cart — Immediate purchase. The discount for your volume bracket is automatically applied, and you complete the order online.
📋 Add to quote request Our team will analyze and get back to you with a proposal. Ideal for large volumes, special deadlines, or when you need to add cables that are not available for sale online.

Offshore NEK 606 Locked Cable for Precision InstrumentationDeveloped for the most extreme conditions in offshore and marine environments. This cable, with its robust shielding and water blocking properties, ensures maximum security and precise data transmission for your critical systems.
  • Maximum Protection Against Water: Double locking system, longitudinal and transverse, for complete watertightness and longer service life.
  • State-of-the-art Fire Safety: Halogen-free, with low smoke and high flame retardancy.
  • Extremely Robust Construction: Exterior coating made of durable and flexible polyurethane, suitable for harsh environments.
  • Clean and Reliable Signal: Collective shielding with copper/polyester tape protects against any interference.
  • Ideal for Critical Applications: Perfect for instrumentation, communication, control and alarm systems.

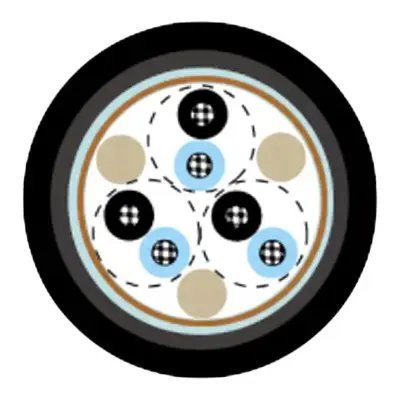

PRODUCT DESIGN
  • Conductors: Circular, stranded, corrugated, and tinned copper wire, conforming to IEC 60228 class 5. Class 2 available upon request.
  • Insulation: Halogen-free EPR compound.
  • Pairing: Color-coded cores, twisted together.
  • Filling: Water-blocking fillers, if necessary.
  • Collective Shielding: Pairs/trios/quads are grouped and collectively shielded by polyester tape with a copper backing in contact with a braided tinned copper drain wire.
  • Water Blocking Elements: Water blocking tape and cords to provide longitudinal watertightness.
  • Inner layer: Halogen-free thermosetting compound, SHF2.
  • Outer Sheath Composition: Polyurethane to provide transverse water tightness; PE is optional but does not meet the low smoke emission standard.
  • Road Identification:

  • Pair: Black and Light Blue

  • Suit (Trio): Black, Light Blue, and Brown.

  • Court colors: Black, Light Blue, Brown, and Gray.

  • Outer sheath color: Gray (for standard instrumentation) or Blue (for Intrinsically Safe - IS circuits). Other colors, such as Black for greater UV resistance, are available upon request.
DETAILS

Benefits

  • Superior Water Protection: Construction with partial water blocking, using tapes and fillers that guarantee longitudinal and transverse watertightness.
  • High Fire Safety: Flame-retardant material with low smoke emission and halogen-free, ideal for confined spaces.
  • Reliable Signal Transmission: Collective shielding with copper tape and drain wire protects against electromagnetic interference.
  • Strength and Durability: External coating in polyurethane, offering robustness for offshore and marine applications.
  • Wide Temperature Range: Designed to operate safely in temperatures ranging from -20°C to +90°C.
  • Low Corrosivity: In the event of a fire, low-acid materials protect sensitive electronic equipment.
  • Optimized Installation: Reduced bending radius that facilitates mounting in fixed installations with limited space.
  • Strict Compliance: It meets multiple international standards, including NEK 606 and IEC 60092, ensuring quality and safety.
  • Driver Integrity: Class 2 tinned copper conductors for excellent conductivity and corrosion resistance.
  • Enhanced Security: Insulation made of HFEPR and an inner sheath made of SHF2 for maximum electrical and mechanical protection.

Applications

  • Instrumentation Systems: Connecting sensors and measuring devices on oil and gas platforms.
  • Communication Networks: Transmission of data and voice signals on ships, ferries, and other maritime vessels.
  • Control Circuits: Used in control panels for the automation of machinery and onboard processes.
  • Alarm Systems: Ideal for wiring fire detection systems, gas systems, and other security alarms.
  • Automation on Platforms: Reliability for process control systems in offshore environments.
  • Equipment Monitoring: Connecting sensors to monitor the performance of engines and pumps on ships.
  • Maritime Process Control: Applications in systems that require stable signal transmission in harsh environments.
  • Navigation Systems: Interconnection of electronic equipment in control bridges and control rooms.
  • Internal communication: Used in intercom and telephone systems on board maritime installations.
  • Intrinsic Safety Applications: It can be used in classified areas when combined with a blue sheath.
TECHNICAL DATA
General information
Product typeOffshore & Marine Cables NEK606 with Water Lockout. HydroCore®
ApplicationsUsed for instrumentation, communication, control and alarm systems.
Electrical Parameters
Operating Voltage250 V
Maximum Resistance at 20°C (0.75 mm²)26.3 Ω/km
Maximum Resistance at 20°C (1.0 mm²)19.3 Ω/km
Maximum Resistance at 20°C (1.5 mm²)12.9 Ω/km
Mutual Capacitance (0.75 mm²)80 nF/km
Mutual Capacitance (1.0 mm²)90 nF/km
Mutual Capacitance (1.5 mm²)100 nF/km
Nominal Inductance at 1KHz (0.75 mm²)0.682 mH/km
Nominal Inductance at 1KHz (1.0 mm²)0.645 mH/km
Nominal Inductance at 1KHz (1.5 mm²)0.632 mH/km
Maximum L/R at 1KHz (0.75 mm²)20 μH/Ω
Maximum L/R at 1KHz (1.0 mm²)25 μH/Ω
Maximum L/R at 1KHz (1.5 mm²)35 μH/Ω
Product Design
Conductor MaterialStranded, corrugated, and tinned copper wire, class 5 according to IEC 60228. Class 2 available upon request.
InsulationHalogen-free EPR compound (HFEPR).
Road Identification

  • Pair: Black and Light Blue

  • Suit (Trio): Black, Light Blue, and Brown.

  • Court colors: Black, Light Blue, Brown, and Gray.

Collective ShieldingPolyester tape with a copper base in contact with a braided tinned copper drain wire.
Water Blocking ElementsPadding, tape and cords for longitudinal water blocking.
Inner LayerHalogen-free thermosetting compound, SHF2, in gray (blue for intrinsic safety).
Outer Cover CompositionPolyurethane for watertightness across the surface (PE optionally, but does not meet the low smoke standard).
Outer Cover ColorGray (for standard instrumentation) or Blue (for Intrinsically Safe - IS circuits). Other colors, such as Black for greater UV resistance, are available upon request.
Mechanical and Thermal Properties
Radius of curvature (during installation)8 × Outer Diameter
Radius of curvature (fixed installation)6 × Outer Diameter
Temperature Range-20 ° C to + 90 ° C
Product characteristics
Flame RetardantYes, in accordance with IEC 60332-1 and IEC 60332-3-22.
Halogen-freeYes, in accordance with IEC 60754-1,2.
Low Smoke EmissionYes, in accordance with IEC 61034-1,2.
Low CorrosivityYes, in accordance with IEC 60754-2.
Water tightnessYes, as per VG 95218 part 29. Partially blocked against water.
Applicable Standards
NEK 606IEC 60092-351
IEC 60092-376IEC 60092-359
IEC 60092-360IEC 60332-1
IEC 60332 3 22IEC 60754-1,2
IEC 61034-1,2VG 95218 part 29
IEC 60228 class 2
DIMENSIONAL TABLE



ConstructionInsulation Thickness (mm)Internal Cover Thickness (mm)External Cover Thickness (mm)External Diameter (mm)Weight (kg/km)Conductor Diameter (mm)Maximum resistance at 20°C (Ω/km)Mutual Capacitance (nF/km)Nominal Inductance at 1 kHz (mH/km)Max. L/R at 1KHz (μH/Ω)Operating Voltage (V)
2 x 2 x 0.750.61.11.011.4 2 ±1681.126.3800.68220250
4 x 2 x 0.750.61.11.013.5 2 ±2261.126.3800.68220250
7 x 2 x 0.750.61.31.015.6 2 ±3151.126.3800.68220250
8 x 2 x 0.750.61.31.016.7 2 ±3571.126.3800.68220250
12 x 2 x 0.750.61.41.019.6 2 ±4881.126.3800.68220250
16 x 2 x 0.750.61.51.021.7 2 ±6251.126.3800.68220250
19 x 2 x 0.750.61.51.022.7 2 ±6981.126.3800.68220250
24 x 2 x 0.750.61.71.026.1 2 ±8931.126.3800.68220250
32 x 2 x 0.750.62.01.028.7 2 ±11181.126.3800.68220250
2 x 3 x 0.750.61.11.013.0 2 ±1791.126.3800.68220250
3 x 3 x 0.750.61.11.014.1 2 ±2471.126.3800.68220250
4 x 3 x 0.750.61.21.015.1 2 ±2941.126.3800.68220250
7 x 3 x 0.750.61.41.017.7 2 ±4311.126.3800.68220250
8 x 3 x 0.750.61.41.019.5 2 ±5151.126.3800.68220250
12 x 3 x 0.750.61.51.022.6 2 ±6771.126.3800.68220250
16 x 3 x 0.750.61.61.025.1 2 ±8771.126.3800.68220250
19 x 3 x 0.750.61.71.026.3 2 ±9871.126.3800.68220250
24 x 3 x 0.750.61.81.030.2 2 ±12711.126.3800.68220250
2 x 2 x 1.00.61.11.011.9 2 ±2001.319.3900.64525250
4 x 2 x 1.00.61.11.014.3 2 ±2681.319.3900.64525250
7 x 2 x 1.00.61.31.016.7 2 ±3891.319.3900.64525250
8 x 2 x 1.00.61.31.017.7 2 ±4311.319.3900.64525250
12 x 2 x 1.00.61.51.020.9 2 ±5931.319.3900.64525250
16 x 2 x 1.00.61.61.023.1 2 ±7671.319.3900.64525250
19 x 2 x 1.00.61.71.024.5 2 ±8721.319.3900.64525250
24 x 2 x 1.00.61.81.027.9 2 ±11031.319.3900.64525250
32 x 2 x 1.00.62.11.030.7 2 ±13811.319.3900.64525250
3 x 3 x 1.00.61.11.014.9 2 ±2941.319.3900.64525250
4 x 3 x 1.00.61.31.016.0 2 ±3521.319.3900.64525250
7 x 3 x 1.00.61.51.018.9 2 ±5251.319.3900.64525250
12 x 3 x 1.00.61.61.024.1 2 ±8351.319.3900.64525250
16 x 3 x 1.00.61.61.026.8 2 ±10761.319.3900.64525250
19 x 3 x 1.00.61.81.028.3 2 ±12341.319.3900.64525250
24 x 3 x 1.00.62.01.032.4 2 ±15651.319.3900.64525250
2 x 2 x 1.50.71.21.013.3 2 ±2631.612.91000.63235250
4 x 2 x 1.50.71.21.016.1 2 ±3621.612.91000.63235250
7 x 2 x 1.50.71.41.019.2 2 ±5411.612.91000.63235250
8 x 2 x 1.50.71.41.020.4 2 ±6041.612.91000.63235250
12 x 2 x 1.50.71.61.024.4 2 ±8511.612.91000.63235250
16 x 2 x 1.50.71.71.027.0 2 ±10971.612.91000.63235250
19 x 2 x 1.50.71.81.028.4 2 ±12341.612.91000.63235250
24 x 2 x 1.50.71.91.032.7 2 ±15801.612.91000.63235250
32 x 2 x 1.50.72.21.035.9 2 ±19851.612.91000.63235250
2 x 3 x 1.50.71.21.015.5 2 ±2781.612.91000.63235250
3 x 3 x 1.50.71.21.016.9 2 ±3991.612.91000.63235250
4 x 3 x 1.50.71.31.018.3 2 ±4881.612.91000.63235250
7 x 3 x 1.50.71.51.021.8 2 ±7401.612.91000.63235250
8 x 3 x 1.50.71.51.023.5 2 ±8611.612.91000.63235250
12 x 3 x 1.50.71.71.028.2 2 ±11971.612.91000.63235250
16 x 3 x 1.50.71.81.031.4 2 ±15491.612.91000.63235250
19 x 3 x 1.50.71.91.032.9 2 ±17591.612.91000.63235250
24 x 3 x 1.50.72.11.038.2 2 ±22681.612.91000.63235250
