HydroCore® Marine Cable NEK 606 Water Blocked S1 or S1/S5 RFOU(i); 250V; Instrumentation and Control; Collective Shielding; Armored; Max. 2,50mm²; 1 to 37 pairs/trios/quads; HFEPR / SHF2 – SHF MUD / PUR; Flame retardant; +90°C

HydroCore® Marine Instrument Cable – Flame Retardant PUR Water Blocked S2 or S2/S6 RFOU(c) 250V

Rodent protection?

Provides extra protection against rodents and termites. The price will be updated in your cart.

💡 Add to cart — Immediate purchase. The discount for your volume bracket is automatically applied, and you complete the order online.
📋 Add to quote request Our team will analyze and get back to you with a proposal. Ideal for large volumes, special deadlines, or when you need to add cables that are not available for sale online.

NEK606 Offshore Cable: Safety and Reliability for Critical SystemsDesigned for the harshest conditions, this cable ensures the integrity of instrumentation, control, and alarm systems in offshore environments. Its multi-layered construction offers superior protection and reliable data transmission where failure is not an option.
  • Maximum Fire Safety: Zero halogen, low smoke, and flame retardant to protect lives and equipment.
  • Double Water Lock: Longitudinal and transverse protection against moisture, ensuring continuous system operation.
  • Extreme Resistance: Robust mud-resistant coating (MUD) and mechanical protection against impacts and abrasion.
  • Pure and Reliable Signal: Collective shielding with copper tape that cancels electromagnetic interference (EMI).
  • Ideal for Offshore Platforms: Perfect for critical communication and control systems in harsh marine environments.

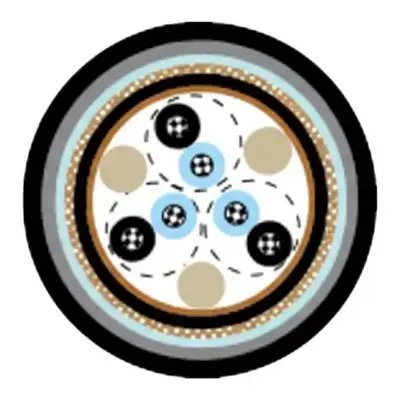

PRODUCT DESIGN
  • Conductors: Stranded, tinned and annealed copper wire, circular, class 5, according to IEC 60228. Class 2 available upon request.
  • Insulation: Halogen-free EPR compound.
  • Twist: Color-coded tracks twisted together.
  • Filling: Water-blocking fillers, if necessary.
  • Collective Shielding: Pairs/trios/quads are grouped together and collectively shielded by polyester tape with a copper backing in contact with a braided tinned copper drain wire.
  • Bedding: Halogen-free compound, PETP wrapping tape will be applied to the bedding if necessary.
  • Armor: Tinned copper wire braid, PETP wrapping tape will be applied over the braid if necessary.
  • Water Blocking Elements: Water blocking tape and wires to provide longitudinal watertightness.
  • Inner Coating: Halogen-free thermosetting compound, SHF2 (for TYPE S2). Halogen-free mud-resistant (MUD) thermosetting compound, SHF MUD (for TYPE S2/S6).
  • Outer Cover: Polyurethane to provide transverse water tightness; PE is optional but does not meet the low smoke emission standard.
  • Road Identification:

  • Pair: Black and Light Blue

  • Suit (Trio): Black, Light Blue, and Brown.

  • Court colors: Black, Light Blue, Brown, and Gray.

  • Outer sheath: Gray (for standard instrumentation) or Blue (for Intrinsically Safe - IS circuits). Other colors, such as Black for greater UV resistance, available upon request.
DETAILS

Benefits

  • Safe operation at sea: Construction with watertight seal for maximum reliability.
  • High fire safety: Flame-retardant material with low fire spread.
  • Protection for people and equipment: Halogen-free and with low emission of toxic fumes.
  • Resistance to hostile environments: Robust casing resistant to drilling mud.
  • Clean signal transmission: Collective shielding that protects against electromagnetic interference.
  • High mechanical durability: Armor with copper braid that resists impacts and abrasion.
  • Versatility in varied climates: Wide operating temperature range, from -20°C to +90°C.
  • Optimized installation: Superior flexibility that facilitates assembly in complex locations.
  • Long service life: High-quality materials that guarantee performance and durability.
  • International compliance: Designed to meet stringent offshore standards NEK 606 and IEC.

Applications

  • Instrumentation systems: Connecting sensors and meters on offshore platforms.
  • Communication networks: Data transmission on ships, vessels and FPSOs.
  • Control circuits: Automation and control of equipment in offshore environments.
  • Alarm and security systems: Power supply for emergency and fire suppression systems.
  • Oil and gas platforms: Fixed and floating installations exposed to harsh conditions.
  • Shipbuilding industry: General wiring in engine rooms, deck and control panels.
  • Floating production units: Ideal for complex FPSO installations.
  • Drilling equipment: Superior resistance in areas with mud and chemicals.
  • Marine automation panels: Reliability for onboard process control.
  • Monitoring systems: Surveillance and monitoring systems in critical areas.
TECHNICAL DATA
General information
Product typeOffshore & Marine Cables NEK606 with Water Blocking, S2 or S2/S6 RFOU(c) 250V. HydroCore®
ApplicationsUsed for instrumentation, communication, control and alarm systems.
Electrical Parameters
Operating Voltage250V
Maximum resistance at 20°C0.75mm²: 26.3 Ω/km; 1.0mm²: 19.3 Ω/km; 1.5mm²: 12.9 Ω/km; 2.5mm²: 8.02 Ω/km
Mutual Capacitance0.75mm²: 80 nF/km; 1.0mm²: 90 nF/km; 1.5mm²: 100 nF/km; 2.5mm²: 110 nF/km
Nominal Inductance at 1kHz0.75mm²: 0.682 MH/km; 1.0mm²: 0.645 MH/km; 1.5mm²: 0.632 MH/km; 2.5mm²: 0.593 MH/km
Maximum L/R at 1kHz0.75mm²: 20 μH/Ω; 1.0mm²: 25 μH/Ω; 1.5mm²: 35 μH/Ω; 2.5mm²: 50 μH/Ω
Product Design
Conductor MaterialTinned, annealed, and stranded circular copper wire.
Driver ClassCompliant with IEC 60228 class 5. Class 2 available upon request.
InsulationHalogen-free EPR compound (HFEPR).
Road Identification
  • Pair: Black and Light Blue

  • Suit (Trio): Black, Light Blue, and Brown.

  • Court colors: Black, Light Blue, Brown, and Gray.

FillingFill with water-blocking seals, if necessary.
Collective ShieldingPairs/trios are collectively bundled and shielded by copper-based polyester tape in contact with a braided tinned copper drain wire.
SeparationHalogen-free compound; PETP tape will be applied over the separation, if necessary.
ArmorTinned copper wire mesh, PETP tape will be applied over the mesh if necessary.
Water Blocking ElementsTape and wires are used to block water and provide longitudinal sealing.
Internal CoatingHalogen-free thermoset compound, SHF2 (for TYPE S2) or halogen-free mud-resistant thermoset compound (MUD), SHF MUD (for TYPE S2/S6), gray color (blue for intrinsically safe).
Exterior CladdingPolyurethane to provide transverse water tightness.
Outer Cover ColorOuter sheath: Gray (for standard instrumentation) or Blue (for Intrinsically Safe - IS circuits). Other colors, such as Black for greater UV resistance, available upon request.
Product characteristics
Flame resistanceFlame retardant.
Smoke EmissionLow smoke emission.
Halogen ContentHalogen-free.
Mud ResistanceMud resistant.
Minimum Radius of Curvature8 x External Diameter (during installation); 6 x External Diameter (fixed installation).
Temperature Range-20 ° C to + 90 ° C.
Applicable Standards
NEK 606IEC 60092-376
IEC 60092-360IEC 60332-1
IEC 60332 3 22IEC 60754-1,2
IEC 61034-1,2VG 95218 part 29
IEC 60092-351IEC 60092-359
DIMENSIONAL TABLE
Construction (Number of elements x Number of paths in the element x Cross-sectional area mm²)Nominal Insulation Thickness (mm)Nominal Bed Thickness (mm)Nominal Thickness of Internal Cover (mm)Nominal Thickness of the External Cover (mm)Nominal Outside Diameter (mm)Nominal Weight (kg/km)
1×2×0.750.61.11.11.013.1±2 210
2×2×0.750.61.11.31.017.0±2 310
3×2×0.750.61.11.31.017.6±2 373
4×2×0.750.61.11.31.018.4±2 410
5×2×0.750.61.11.41.019.8±2 567
6×2×0.750.61.11.41.021.1±2 641
7×2×0.750.61.11.41.021.1±2 656
8×2×0.750.61.11.51.022.7±2 714
9×2×0.750.61.11.51.023.8±2 782
10×2×0.750.61.11.61.024.9±2 798
12×2×0.750.61.11.61.025.4±2 851
14×2×0.750.61.11.61.026.5±2 919
15×2×0.750.61.11.71.028.1±2 1008
16×2×0.750.61.11.71.028.5±2 1061
18×2×0.750.61.11.81.029.9±2 1134
19×2×0.750.61.11.81.030.2±2 1171
20×2×0.750.61.11.81.031.2±2 1271
21×2×0.750.61.11.81.032.0±2 1318
23×2×0.750.61.11.91.032.6±2 1423
24×2×0.750.61.11.91.033.9±2 1439
27×2×0.750.61.21.91.034.9±2 1554
30×2×0.750.61.22.01.036.1±2 1685
33×2×0.750.61.22.01.037.3±2 1811
37×2×0.750.61.22.11.038.9±2 2048
1×3×0.750.61.11.21.013.7±2 242
2×3×0.750.61.11.31.016.5±2 378
3×3×0.750.61.11.31.018.2±2 436
4×3×0.750.61.11.41.019.6±2 567
5×3×0.750.61.11.41.021.1±2 677
6×3×0.750.61.11.51.023.1±2 793
7×3×0.750.61.11.51.023.1±2 819
8×3×0.750.61.11.61.024.6±2 887
9×3×0.750.61.11.61.025.9±2 992
10×3×0.750.61.11.71.027.7±2 1008
12×3×0.750.61.11.71.028.4±2 1134
14×3×0.750.61.11.71.029.5±2 1208
15×3×0.750.61.11.81.030.5±2 1292
16×3×0.750.61.11.81.031.2±2 1376
18×3×0.750.61.11.91.032.7±2 1475
19×3×0.750.61.11.91.033.0±2 1549
20×3×0.750.61.11.91.033.8±2 1638
21×3×0.750.61.21.91.034.7±2 1722
23×3×0.750.61.22.01.036.1±2 1885
24×3×0.750.61.22.01.036.6±2 1922
27×3×0.750.61.22.11.038.8±2 2142
30×3×0.750.61.22.11.0#VALUE!2321
32×3×0.750.61.22.21.041.5±2 2462
1×2×1.00.61.11.21.013.7±2 236
2×2×1.00.61.11.31.015.4±2 352
3×2×1.00.61.11.31.018.3±2 494
4×2×1.00.61.11.41.019.4±2 562
5×2×1.00.61.11.41.020.7±2 641
6×2×1.00.61.11.51.022.2±2 735
7×2×1.00.61.11.51.022.2 + 2756
8×2×1.00.61.11.51.023.8±2 814
9×2×1.00.61.11.61.025.2±2 893
10×2×1.00.61.11.61.026.1±2 924
12×2×1.00.61.11.61.026.7±2 1029
14×2×1.00.61.11.71.028.0±2 1082
15×2×1.00.61.11.81.029.8±2 1181
16×2×1.00.61.11.81.030.2±2 1234
18×2×1.00.61.11.81.031.5±2 1318
19×2×1.00.61.11.81.031.8±2 1360
20×2×1.00.61.11.91.033.1±2 1491
21×2×1.00.61.11.91.033.9±2 1549
23×2×1.00.61.21.91.034.7±2 1691
24×2×1.00.61.22.01.036.3±2 1701
27×2×1.00.61.22.01.037.0±2 1832
30×2×1.00.61.22.11.038.7±2 2079
33×2×1.00.61.22.11.040.0±2 2237
37×2×1.00.61.22.21.041.3±2 2420
1×3×1.00.61.11.21.014.0±2 263
2×3×1.00.61.11.41.019.0±2 546
3×3×1.00.61.11.41.019.4±2 567
4×3×1.00.61.11.41.020.7±2 656
5×3×1.00.61.11.51.022.2 + 2782
6×3×1.00.61.11.61.024.4±2 919
7×3×1.00.61.11.61.024.4±2 950
8×3×1.00.61.11.61.025.8±2 1029
9×3×1.00.61.11.71.027.4±2 1134
10×3×1.00.61.11.71.029.1 + 21208
12×3×1.00.61.11.81.030.1±2 1328
14×3×1.00.61.11.81.031.2 + 21423
15×3×1.00.61.11.81.032.1±2 1512
16×3×1.00.61.11.91.033.1±2 1649
18×3×1.00.61.21.91.034.8±2 1759
19×3×1.00.61.22.01.035.3±2 1838
20×3×1.00.61.22.01.036.1±2 1974
21×3×1.00.61.22.01.036.8±2 2048
23×3×1.00.61.22.11.038.6±2 2326
24×3×1.00.61.22.11.039.3±2 2310
27×3×1.00.61.22.21.041.2 + 22546
30×3×1.00.61.22.21.042.8±2 2762
32×3×1.00.61.22.31.044.1±2 2930
1×2×1.50.71.11.21.014.7±2 273
2×2×1.50.71.11.41.017.4±2 441
3×2×1.50.71.11.41.019.6±2 614
4×2×1.50.71.11.41.020.8±2 667
5×2×1.50.71.11.51.023.1±2 809
6×2×1.50.71.11.61.024.8±2 935
7×2×1.50.71.11.61.024.8±2 971
8×2×1.50.71.11.61.025.7±2 1024
9×2×1.50.71.11.71.028.3±2 1113
10×2×1.50.71.11.71.029.4±2 1187
12×2×1.50.71.11.81.030.3±2 1334
14×2×1.50.71.11.81.031.5±2 1391
15×2×1.50.71.11.91.033.6±2 1517
16×2×1.50.71.11.91.034.1±2 1654
18×2×1.50.71.22.01.036.2±2 1754
19×2×1.50.71.22.01.036.5±2 1853
20×2×1.50.71.22.11.038.0±2 1990
21×2×1.50.71.22.11.039.3±2 2153
23×2×1.50.71.22.11.039.9±2 2294
24×2×1.50.71.22.21.041.8±2 2310
27×2×1.50.71.22.21.042.6±2 2510
30×2×1.50.71.22.31.044.122730
33×2×1.50.71.22.31.045.6±2 2945
37×2×1.50.71.42.41.047.4±2 3234
1×3×1.50.71.11.21.015.2±2 310
2×3×1.50.71.11.41.019.0±2 515
3×3×1.50.71.11.51.021.5±2 719
4×3×1.50.71.11.51.022.9±2 824
5×3×1.50.71.11.61.023.0±2 861
6×3×1.50.71.11.71.024.8±2 1008
7×3×1.50.71.11.71.027.1±2 1192
8×3×1.50.71.11.71.029.0±2 1334
9×3×1.50.71.11.81.030.9±2 1517
10×3×1.50.71.11.91.033.1±2 1523
12×3×1.50.71.11.91.033.5±2 1796
14×3×1.50.71.22.01.035.8±2 1906
15×3×1.50.71.22.01.036.8±2 2027
16×3×1.50.71.22.11.038.0±2 2216
18×3×1.50.71.22.11.040.1±2 2420
19×3×1.50.71.22.21.040.6±2 2494
20×3×1.50.71.22.21.041.6±2 2709
21×3×1.50.71.22.21.042.4±2 2814
23×3×1.50.71.22.31.044.0±2 3071
24×3×1.50.71.22.31.044.7±2 3297
27×3×1.50.71.42.41.047.3±2 3413
30×3×1.50.71.42.51.049.4±2 3733
32×3×1.50.71.42.51.050.6±2 3932
1×2×2.50.71.11.21.015.5±2 315
2×2×2.50.71.11.41.020.9±2 683
3×2×2.50.71.11.51.021.9±2 756
4×2×2.50.71.11.51.023.1±2 861
5×2×2.50.71.11.61.025.0±2 1013
6×2×2.50.71.11.61.026.8±2 1160
7×2×2.50.71.11.61.026.8±2 1208
8×2×2.50.71.11.71.029.0±2 1318
9×2×2.50.71.11.81.030.8±2 1454
10×2×2.50.71.11.81.032.0±2 1502
12×2×2.50.71.31.91.033.0±2 1622
14×2×2.50.71.21.91.034.7±2 1817
15×2×2.50.71.22.01.037.0±2 1979
16×2×2.50.71.22.01.037.6±2 2069
18×2×2.50.71.22.11.039.9±2 2347
19×2×2.50.71.22.11.040.3±2 2431
20×2×2.50.71.22.21.041.9±2 2657
21×2×2.50.71.22.21.043.0±2 2762
23×2×2.50.71.22.3.1.043.8±2 2888
24×2×2.50.71.22.31.045.7±2 2993
27×2×2.50.71.42.41.047.1±2 3308
30×2×2.50.71.42.51.048.8±2 3607
33×2×2.50.71.42.51.050.5±2 3901
37×2×2.50.71.42.61.052.2±2 4242
1×3×2.50.71.11.31.016.3±2 378
2×3×2.50.71.11.51.022.5±2 824
3×3×2.50.71.11.51.023.2±2 919
4×3×2.50.71.11.61.024.9 + 21087
5×3×2.50.71.11.61.026.8±2 1265
6×3×2.50.71.11.81.029.8±2 1502
7×3×2.50.71.11.81.029.8±2 1580
8×3×2.50.71.11.81.031.6±2 1706
9×3×2.50.71.11.91.033.7±2 1948
10×3×2.50.71.22.01.036.4±2 1985
12×3×2.50.71.22.01.037.5±2 2216
14×3×2.50.71.22.11.039.6±2 2567
15×3×2.50.71.22.21.040.922751
16×3×2.50.71.22.21.042.0±2 2893
18×3×2.50.71.22.31.044.0±2 3161
19×3×2.50.71.22.31.044.4±2 3281
20×3×2.50.71.22.31.045.5±2 3528
21×3×2.50.71.42.41.046.9±2 3733
23×3×2.50.71.42.51.048.7±2 4079
24×3×2.50.71.42.51.049.5±2 4064
27×3×2.50.71.42.61.052.0±2 4494
30×3×2.50.71.42.71.054.3±2 4930
32×3×2.50.71.42.71.055.8±2 5208
RELATED PRODUCTS

SHIPPING AND DELIVERY TIMES

Shipping and Delivery Times – FAQ

Q: How does product shipping work?

A: We ship throughout Brazil. We work with the Post Office (SEDEX and PAC) and several partner carriers. When you finalize your purchase, our system calculates and presents the best shipping options available for your zip code, based on the weight and dimensions of your order.

Q: What is the delivery time for my order?

A: Our total delivery time is the sum of two stages: Availability Time + Carrier Time.

  • Availability Period:

    • Products in Stock: If the product is in stock, it will be shipped within 2 business days.

    • Products Made to Order: To ensure maximum quality and flexibility, many of our cables are made to order . In these cases, the production and shipping time is 15 business days.

  • Carrier's deadline:

    • This is the time it takes for the shipping to reach you after we dispatch it. This timeframe is shown when calculating shipping costs in your shopping cart.

Therefore, for a product that is in production, the total estimated delivery time will be 15 business days plus the shipping time.

Q: Why the 15 business day production lead time? What if there are delays?

A: Our on-demand production model allows us to offer superior industrial-quality cables, in the exact length you need, and at extremely competitive prices. As a manufacturing unit, our production process involves several variables, such as receiving raw materials and operating complex machinery. We understand that unforeseen events can occur. Should any event arise that could impact the 15-business-day timeframe, our team will proactively contact you to keep you informed of the new schedule. We are committed to complete transparency throughout the entire process.

Q: Can I cancel an order that is already in production?

A: For products manufactured on demand (make-to-order model), we do not accept cancellations once the order enters our production line. This is because, to ensure speed and competitive pricing, the raw materials for your cable are separated and allocated, and the manufacturing process begins immediately after payment confirmation. Please review your order carefully before finalizing it. If you have any questions, please contact our team.

Shipping Costs

Q: How is the shipping cost calculated?

A: The value is automatically calculated in your shopping cart, based on the total weight of the products, the dimensions of the packaging, and the destination zip code entered.

Q: Do you offer free shipping?

A: We don't currently have a fixed free shipping policy. Occasionally, we may run specific promotions. The most accurate way to check the cost for your location is to add the desired products and your zip code to your cart.

Warranty and Returns

Q: What is the return and exchange policy?

A: According to our policy and the Consumer Protection Code, we accept returns due to buyer's remorse or manufacturing defects within 7 (seven) calendar days of receiving the product. To initiate the process, please contact our Customer Service Center via email. ecommerce@innovcable. Com.br Please provide the order number and reason for the return. The product must be returned in its original packaging, undamaged and showing no signs of misuse. We emphasize that this return policy remains valid and unchanged after receipt.

Q: Do the products have a warranty?

A: Yes. All cables in our product line are guaranteed against manufacturing defects. The specific warranty period can be found on each product page. The warranty does not cover damage caused by incorrect installation, misuse, or natural wear and tear from use.

COIL1 (1)
COIL 2
empilhadeira

Loading and Transportation

1. When lifting with a crane, the correct rope must be used, attached to an axle located in the center of the coil.

* Heads up:
– Move it as close to the ground as possible.
Move slowly and, once in the correct position, do not stop abruptly.

2- In the case of a forklift, the drums must not be damaged by the forklift.

* Heads up:
Place the coil in the center of the fork.
The width of the fork must be greater than the spool.

Transportation and unloading

✽ Precautions when handling cables:
• Do not cover the coils.
• Do not roll more than 20 m.
• Do not use sharp objects when moving.
• Do not roll a damaged coil.
• Do not roll on uneven surfaces.
• Do not store the coil near heaters or flammable materials.


Checks when handling cables – Storage

• Do not remove the protective materials and packaging that protect the reels and cables until they are used.
• Store in a protected or enclosed location to protect against damage from machinery.
• Store in a suitable, closed storage location for extended periods. (Coils and packaging should be kept in a dry place.)
• Seal both ends of the remaining cables on the reels using heat-shrink tubing to prevent moisture absorption.
