MariTimus® Naval Cable: Safety and Performance for Critical Instrumentation Designed for the most demanding naval conditions, this cable is the solution for safety circuits. Its robust construction ensures the integrity of instrumentation and control systems during a fire, protecting lives and guaranteeing operational continuity.
  • Certified Fire Protection: Mica and XLPE tape insulation keeps safety circuits operational during a fire.
  • Signal of High Integrity: Individual aluminum/polyester shielding in each element eliminates interference and ensures accurate data.
  • Crew Safety: LSZH coating with low smoke emission and zero halogen content, which does not propagate flames.
  • Durability in Marine Environments: Reliable operation in temperatures from -30°C to +90°C, ideal for harsh conditions.
  • Specific Naval Application: Perfect for passenger ships and commercial vessels, conforming to IEC 60092 and IEC 60331 standards.
PRODUCT DESIGN

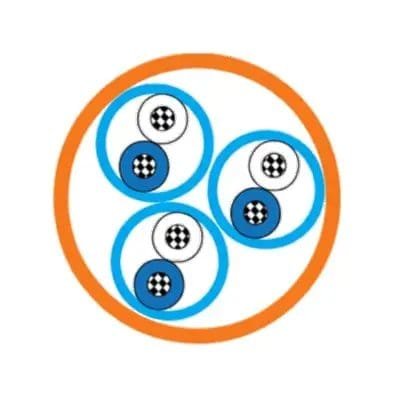

  • Conductors: Class 5 stranded tinned copper conductor. Bare copper or Class 2 conductor can be supplied upon request.
  • Insulation: Mica tape + XLPE.
  • Individual Shielding: Aluminum/Polyester Tape.
  • Drain wire: Tinned copper wire.
  • Outer Sheath: LSOH (SHF1). SHF2 upon request.
  • Road Identification:

  • Pair: Black and Light Blue

  • Suit (Trio): Black, Light Blue, and Brown.

  • Outer Sheath: Orange (International standard for visual identification of fire-resistant circuits) Fire ResistantFor intrinsically safe (IS) circuits, the outer sheath must be blue (subject to consultation).
DETAILS

Benefits

  • Maximum Fire Safety: Designed with mica tape to resist fire, while maintaining the integrity of the circuits.
  • Low Smoke Emission: The LSOH (SHF1) coating ensures low smoke emission and is halogen-free, protecting lives.
  • Reliable Signal Transmission: Individual shielding with aluminum/polyester tape protects against electromagnetic interference.
  • Superior Insulation: XLPE insulation offers excellent electrical and thermal resistance for greater durability.
  • Operation in Variable Temperatures: Reliable performance in an operating temperature range of -30°C to +90°C.
  • Compliance with Standards: It meets stringent IEC standards, such as IEC 60092 and IEC 60331, ensuring international quality.
  • Non-flame propagating: Flame-retardant material that prevents the spread of fire in case of a fire.
  • High-Performance Conductors: Class 5 braided tin-plated copper that ensures excellent conductivity and facilitates installation.
  • Robust Coating: The outer cover (SHF1) offers good mechanical protection in fixed installations.
  • Safety for People: Because it is halogen-free, it does not emit toxic gases, making it ideal for areas with passengers.

Applications

  • Naval and Offshore Installations: Developed for use on board ships, platforms and maritime vessels.
  • Critical Safety Circuits: Essential for alarm systems, fire detection, and emergency control.
  • Instrumentation and Control Systems: Connecting sensors, meters, and control devices in marine environments.
  • Passenger Ships: It ensures safety on cruise ships, ferries, and other vessels with high passenger traffic.
  • Commercial Vessels: Application in cargo ships, tankers and other fleets that require high reliability and safety.
  • Fixed Infrastructure on Board: Used in control panels, machine rooms and other fixed installations without mechanical risk.
  • Areas requiring fire resistance: Perfect for locations where continuity of service is critical during a fire.
  • Onboard Automation: For process control and automation systems that are vital to vessel operation.
  • Emergency Communication Systems: It ensures communication in essential circuits, such as general alarm systems.
  • General Maritime Applications: Versatile for various fixed installations that demand safety and performance in a marine environment.
TECHNICAL DATA
General information
BrandInnovcable
Product typeFire-resistant instrumentation and control cables with individual shielding (MariTimus® PIMF/TIMF).
ApplicationUsed on board ships in fixed installations on safety circuits where fire resistance is required. Suitable for passenger ships and other commercial vessels.
Electrical Parameters
Nominal Voltage150 / 250V
Product Design
Conductor MaterialTin-plated braided copper conductor. Bare copper available upon request.
Driver DesignTin-plated braided copper, Class 5. Class 2 available upon request.
InsulationMica tape + XLPE.
Torsion ElementPairs / Trios
shieldingIndividual shielding with aluminum/polyester tape and tinned copper drain wire.
External CoverLSOH (SHF1). SHF2 can be offered upon request.
Cover Color
  • Outer Sheath: Orange (International standard for visual identification of fire-resistant circuits) Fire ResistantFor intrinsically safe (IS) circuits, the outer sheath must be blue (subject to consultation).
Road Identification

  • Pair: Black and Light Blue

  • Suit (Trio): Black, Light Blue, and Brown.

Mechanical and Thermal Characteristics
Minimum Bending Radius (Fixed Installation)6 x Outer Diameter (for diameters > 25mm); 4 x Outer Diameter (for diameters ≤ 25mm).
Temperature Range-30 °C to +90 °C.
Product characteristics
Fire resistantYes, in accordance with IEC 60331-21.
Flame RetardantYes, in accordance with IEC 60332-1 and IEC 60332-3-22.
Halogen-freeYes, in accordance with IEC 60754-1/2.
Low Smoke EmissionYes, according to IEC 61034.
Applicable Standards
Design and ConstructionIEC 60092-350, IEC 60092-351, IEC 60092-376, IEC 60092-359
Fire resistanceIEC 60331-21
Flame RetardantIEC 60332-1, IEC 60332-3-22
Gas and Halogen EmissionIEC 60754-1/2
Smoke EmissionIEC 61034
Dimensions and Weights
VariationsDimensions, such as outside diameter and weight, vary according to the number of pairs/cracks and the cross-sectional area of ​​the conductor (0.75mm², 1.0mm², etc.), as detailed in the datasheet tables.
DIMENSIONAL TABLE
ConstructionNominal Insulation Thickness (mm)Nominal Sheath Thickness (mm)Nominal Total Diameter (mm)Nominal Weight (kg/km)
20×2×1.00.51.828.31230
24×2×1.00.51.932.51510
30×2×1.00.52.035.41840
37×2×1.00.52.138.12210
1×3×0.750.51.08.3100
2×3×0.750.51.213.5210
3×3×0.750.51.314.5270
4×3×0.750.51.316.0330
5×3×0.750.51.417.9410
6×3×0.750.51.520.3500
7×3×0.750.51.520.3540
8×3×0.750.51.521.8620
10×3×0.750.51.725.0780
12×3×0.750.51.726.4900
14×3×0.750.51.827.71020
16×3×0.750.51.829.51160
19×3×0.750.51.932.01360
20×3×0.750.51.932.51420
24×3×0.750.52.135.71700
30×3×0.750.52.239.62100
32×3×0.750.52.341.22250
1×3×1.00.51.18.9120
2×3×1.00.51.314.4250
3×3×1.00.51.315.4310
4×3×1.00.51.417.1400
5×3×1.00.51.418.9480
6×3×1.00.51.521.5590
7×3×1.00.51.521.5640
8×3×1.00.51.623.3740
10×3×1.00.51.726.5930
12×3×1.00.51.828.21090
14×3×1.00.51.829.41220
16×3×1.00.51.931.51400
19×3×1.00.52.034.11640
20×3×1.00.52.034.71710
24×3×1.00.52.137.92040
30×3×1.00.52.342.32540
32×3×1.00.52.444.02720
1×2×0.750.51.07.980
2×2×0.750.51.212.4170
3×2×0.750.51.213.2210
4×2×0.750.51.314.3260
5×2×0.750.51.316.0320
6×2×0.750.51.417.4380
7×2×0.750.51.417.4410
8×2×0.750.51.418.5460
10×2×0.750.51.521.0570
12×2×0.750.51.521.8650
14×2×0.750.51.622.9740
16×2×0.750.51.624.6840
19×2×0.750.51.726.5980
20×2×0.750.51.726.51010
24×2×0.750.51.930.61260
30×2×0.750.52.033.41530
37×2×0.750.52.135.91830
1×2×1.00.51.08.390
2×2×1.00.51.213.1200
3×2×1.00.51.314.2250
4×2×1.00.51.315.1310
5×2×1.00.51.417.1380
6×2×1.00.51.418.4440
7×2×1.00.51.418.4480
8×2×1.00.51.519.8550
10×2×1.00.51.622.4690
12×2×1.00.51.623.3780
14×2×1.00.51.624.2880
16×2×1.00.51.726.31020
19×2×1.00.51.828.31190
